Submersible pumps can be installed using several different methods, depending on the application. In temporary applications such as construction dewatering, pumps are often lowered into position using a lifting chain and connected to a flexible discharge hose. This simple approach works well for portable pumps that are regularly moved.
For permanent installations, however, pumps are commonly connected to fixed pipework. While this provides a reliable installation, it can make future maintenance and pump removal more difficult. Disconnecting rigid pipework often requires the sump or tank to be emptied, additional lifting equipment, or in some cases, personnel to enter the pit.
A guide rail system offers a smarter alternative. It allows a submersible pump to be safely lowered into position and removed for servicing without disconnecting the fixed pipework, making routine maintenance faster, safer, and more efficient.

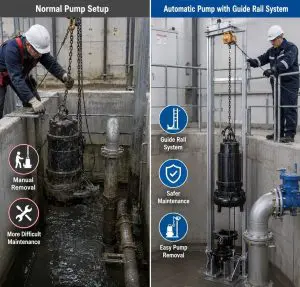

Manual Installation vs Guide Rail Systems
Manual installation is suitable for many portable pumping applications where flexibility is important. Pumps connected to flexible hoses can be easily lifted out and repositioned as required.
Permanent installations present different challenges. Once a pump is hard-piped into a wet well, sump, or tank, removing it for maintenance can become a time-consuming task. Access may be restricted, the pump may be too heavy to maneuver safely, and disconnecting the pipework can significantly increase downtime.
A guide rail system overcomes these challenges by allowing the pump to travel along guide rails until it automatically connects to a fixed discharge elbow. When servicing is required, the pump can simply be lifted vertically, disconnecting from the base connection while the pipework remains in place. This eliminates the need to unbolt pipework or enter the sump to disconnect the pump.
Benefits of Guide Rail Systems
Guide rail systems are designed to improve both safety and maintenance efficiency. By allowing pumps to be removed from above ground, they reduce the need for confined space entry and minimize manual handling. Routine inspections, servicing, and pump replacement can be completed much faster, helping reduce downtime for critical pumping systems.
They are particularly beneficial for larger or permanently installed pumps used in wastewater, industrial, municipal, and stormwater applications where pumps may be difficult to access or connected to fixed pipework. Material selection is also important. Depending on the application and pumped liquid, guide rail systems can be manufactured from materials such as cast iron, stainless steel, or plastic composites to provide the required corrosion and wear resistance.
Applications and Choosing the Right System
Guide rail systems are commonly used in sewage pump stations, wastewater treatment plants, building pumping stations, stormwater pits, and industrial facilities—anywhere a submersible pump requires safe, reliable, and repeatable removal for maintenance.
Selecting the right guide rail system depends on factors such as pump size, weight, installation depth, and the characteristics of the pumped fluid. Choosing materials suited to the operating environment helps maximize service life and minimize maintenance requirements.
Tsurumi offers guide rail kits compatible with a wide range of its submersible pump series, providing a reliable installation solution that simplifies maintenance while improving safety and operational efficiency.
Conclusion
While manually lowering a submersible pump may be suitable for temporary applications, permanent installations can benefit significantly from a guide rail system. By allowing pumps to be installed and removed without disconnecting fixed pipework, guide rail systems reduce maintenance time, improve safety, and help keep pumping systems operating reliably. Whether used in wastewater treatment, stormwater management, or industrial processing, a well-designed guide rail system is an investment that can simplify maintenance and reduce downtime throughout the life of the pump.
If you’re planning a new installation or upgrading an existing pumping system, the team at Tsurumi Australia can help you select the right guide rail system for your application. Contact us to discuss your requirements or explore our range of compatible submersible pumps and guide rail kits.
