KRS/KRD
Max Flow Rate: 80L/sec (4.8m3/min)
Head Max: 31m
KRS/KRD Series

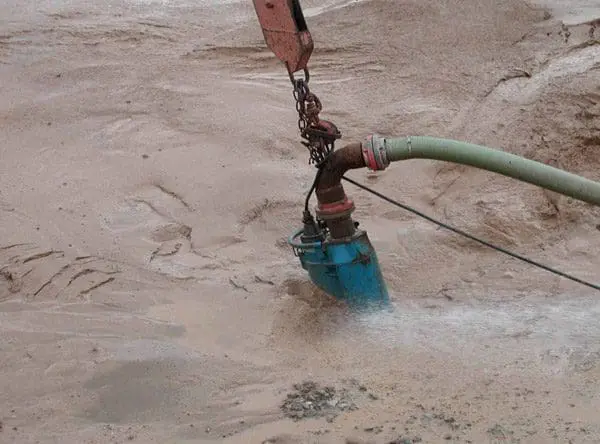

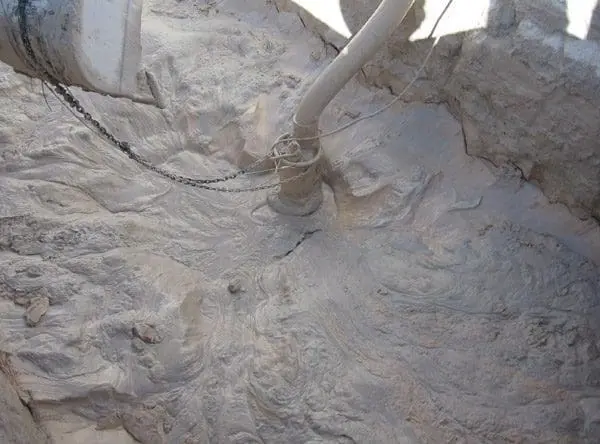

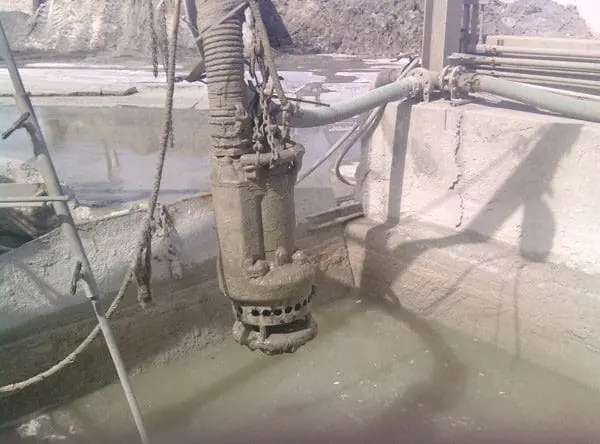

The KRS/KRD-series of slurry-handling type is a submersible three-phase cast iron heavy-duty slurry pump driven by a 4-pole motor. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The other wear parts such as the impeller and the suction plate are also made of high-chromium cast iron for extra durability. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.
| Discharge Bore(mm) | 80 – 200 |
|---|---|
| Motor Output(kW) | 5.5 – 18 |
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| KRD35.5 | 80 | 5.5 | Three | D.O.L. | 30 |
| KRD47.5 | 100 | 7.5 | Three | D.O.L. | 30 |
| KRD611 | 150 | 11 | Three | D.O.L. | 30 |
| KRS-200 | 200 | 18 | Three | D.O.L. | 30 |
