LH & LH-W (1000V)
Max Flow Rate: 108.3L/sec (6.5m3/min)
Head Max: 216m

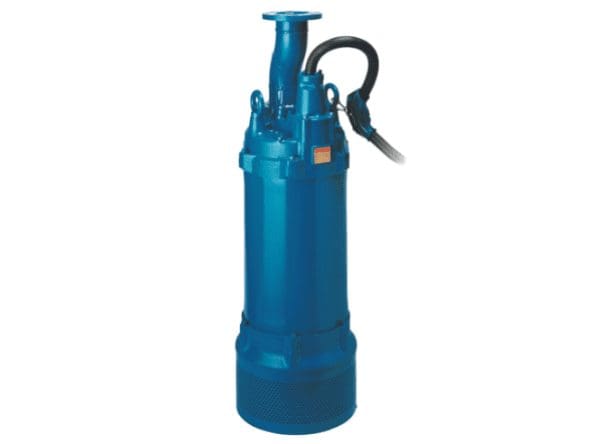

LH & LH-W 1000V Pump
The LH &LH-W 1000V series is a submersible three-phase cast iron high head drainage pump. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| LH422 1000V | 100 | 22 | Three | D.O.L. | 6 |
| LH622 1000V | 150 | 22 | Three | D.O.L. | 12 |
| LH637 1000V | 150 | 37 | Three | D.O.L. | 6 |
| LH645 1000V | 150 | 45 | Three | D.O.L. | 6 |
| LH6110 1000V | 150 | 110 | Three | D.O.L. | 10 |
| LH837 1000V | 200 | 37 | Three | D.O.L | 20 |
| LH845 1000V | 200 | 45 | Three | D.O.L. | 20 |
| LH8110 1000V | 200 | 110 | Three | D.O.L. | 20 |
| LH311W 1000V | 80 | 11 | Three | D.O.L. | 8.5 |
| LH430W 1000V | 100 | 30 | Three | D.O.L. | 8.5 |
| LH4110W 1000V | 100 | 110 | Three | D.O.L. | 8 |
