LH-W-14 (High-Head Dual Impellers)

Flow Rate: 15L/sec (0.9m3/min)
Head Max: 101m

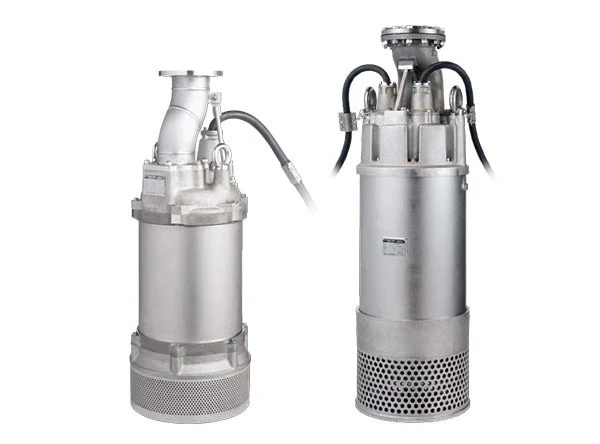

LH-W-14 Series

The LH-W-14-series is a submersible stainless steel casting high head corrosion-resistant pump having dual impellers designed for handling aggressive and corrosive liquids. The all wetted parts are made of 316 stainless steel, enables it to withstand demanding conditions found in construction, aggregate and mining applications. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.

Discharge Bore(mm)50 – 100
Motor Output(kW)3 – 110



Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data

Discharge Bore (mm)ModelMotor Output (kW)PhaseStarting MethodSolids Passage (mm)
80LH311W-1411ThreeD.O.L.8.5
80LH322W-1422ThreeD.O.L.8.5
