LH-W (High-Head Dual Impellers)
LH-W Series

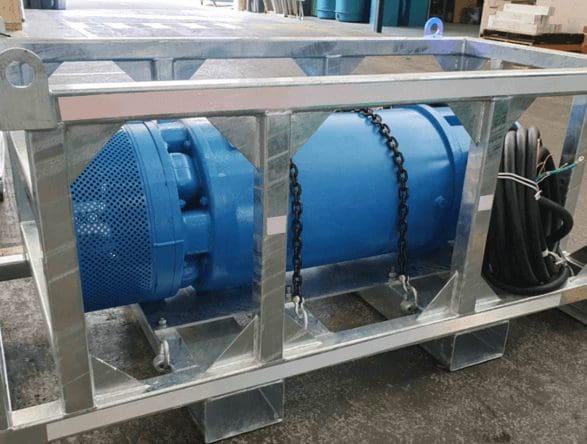

The LH-W-series is a three-phase cast iron extra high head drainage pump having dual impellers. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe.*1 The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.*2
*1 excluding LH4110W
*2 excluding LH23.0W
| Discharge Bore(mm) | 50 – 100 |
|---|---|
| Motor Output(kW) | 3 – 110 |
| Discharge Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | LH23.0W | 3 | Three | D.O.L. | 6 |
| 50 | LH25.5W | 5.5 | Three | D.O.L. | 6 |
| 80 | LH311W | 11 | Three | D.O.L. | 8.5 |
| 80 | LH322W | 22 | Three | D.O.L. | 8.5 |
| 100 | LH430W | 30 | Three | Star-Delta | 8.5 |
| 100 | LH4110W | 110 | Three | Star-Delta | 8 |
