KTD Series

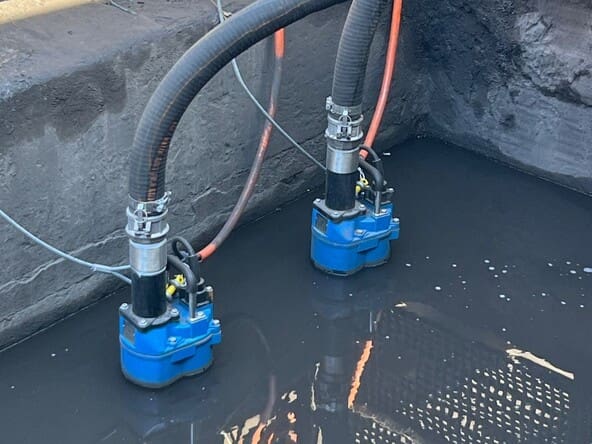

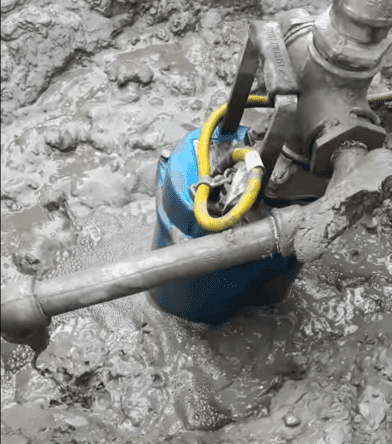

The KTD-series is a submersible three-phase cast iron heavy-duty slurry pump. It is equipped with an agitator that assists smooth suction of the settled matters. The pump parts such as the impeller and the suction cover are made of wear-resistant materials. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.

Discharge Bore(mm) 50 – 80
Motor Output(kW) 2.2 – 3.7





Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data

Discharge
Bore
(mm)
ModelMotor
Output
(kW)
PhaseStarting
Method
Solids
Passage
(mm)
50KTD22.22.2ThreeD.O.L.10
80KTD33.73.7ThreeD.O.L.10
