KTV Series – Submersible Portable Drainage & Slurry Pumps (Manual)
Max Flow Rate: 16.3L/sec (1m3/min)
Head Max: 35m

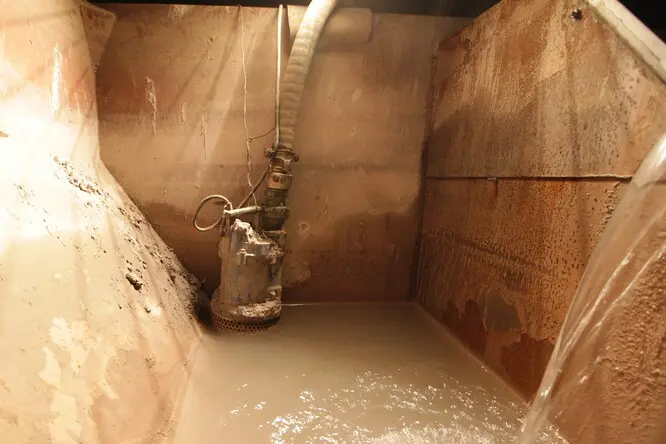

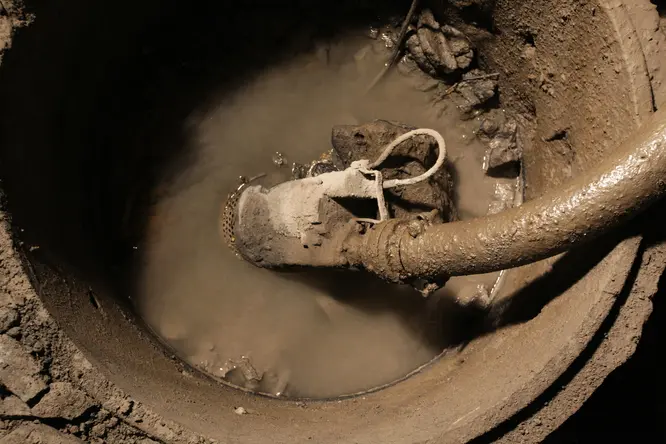

Lightweight portable slurry and draining pumping for construction, mining, and confined spaces
Drainage Version
The KTV-series is a submersible three-phase portable drainage pump. Though it is a three-phase unit, the pump is designed to weigh lighter for portability, yet it can be used for pumping liquid found in ordinary construction and foundation works. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.
| Discharge Bore(mm) | 50 – 80 (100) |
|---|---|
| Motor Output(kW) | 0.75 – 5.5 |
Slurry Version
The KTV-series of slurry-handling type is a submersible three-phase portable slurry pump. It is equipped with an agitator that assists smooth suction of the settled matters.
| Discharge Bore(mm) | 50 – 80 (100) |
|---|---|
| Motor Output(kW) | 2 – 3 |
Typical Applications
- Civil infrastructure projects (road, rail, dam, and bridge)
- Construction work
- Dewatering
- Sumps & Pump Stations
- Water Transfer
- Turkey Nest Dams
- Industrial plants/Cement plants
- Mining
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| Drainage Version | |||||
| KTV2.75 | 50 | 0.75 | Three | D.O.L. | 8.5 |
| KTV2-15 | 50(80)* | 1.5 | Three | D.O.L. | 8.5 |
| KTV2-22 | 50(80)* | 2.2 | Three | D.O.L. | 8.5 |
| KTV2-37H | 50 | 3.7 | Three | D.O.L. | 8.5 |
| KTV2-37 | 80(100)* | 3.7 | Three | D.O.L. | 8.5 |
| KTV3-55 | 80(100)* | 5.5 | Three | D.O.L. | 8.5 |
| Slurry Version | |||||
| KTV2-50 | 50(80)* | 2 | Three | D.O.L. | 8.5 |
| KTV2-80 | 80(100)* | 3 | Three | D.O.L. | 8.5 |
* Discharge bore in parentheses available on special request.
Why Choose Tsurumi
Tsurumi pumps are known worldwide for their reliability, ease of maintenance and long service life. With more than a century of engineering experience, Tsurumi is trusted by contractors, councils and operators across Australia. Customers also benefit from national spare-parts support and fast delivery.
Proven Tsurumi Reliability
Tsurumi pumps are used on job sites across Australia and around the world. The KTV slurry and drainage pumps are supported by Tsurumi’s national spare parts network and offers fast delivery to keep projects on schedule.
