TAR Series – Submersible Wastewater Air Mixers
Submersible aeration and mixing for wastewater treatment systems

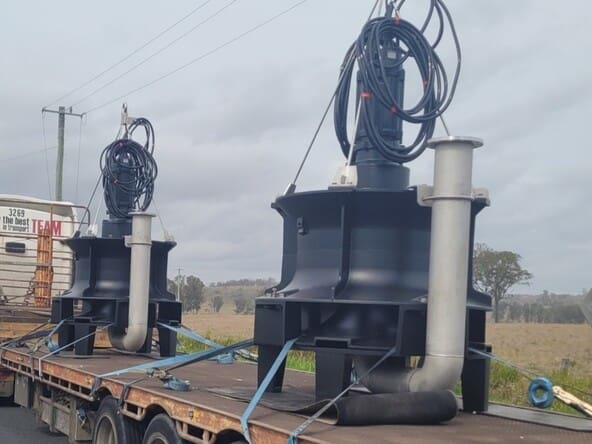

The TAR-series is a submersible air mixer that combines aeration and mixing to promote wastewater treatment. The powerful current discharged from the high-performance axial-flow impeller shears the air supplied by the blower into tiny bubbles, forming a furious flow of mixed air and water that efficiently delivers oxygen throughout the wastewater. Moreover, Tsurumi’s original downward 4-directional discharge design spreads that mixed flow outward along the bottom of the tank toward the edges to ensure homogeneity.
When paired with a Tsurumi rotary air blower, the TAR air mixers not only offer effective aerobic agitation but they can also be used for both aerobic and anaerobic processing by simply switching the blower on and off.
| Discharge Bore(mm) | 65 – 250 |
|---|---|
| Motor Output(kW) | 1.5 – 30 |
Typical Applications
- Abattoirs
- Wastewater Treatment Plants
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Mixing Capacity (m3) |
|---|---|---|---|---|---|
| 65TAR41.5 | 65 | 1.5 | Three | D.O.L. | 273 |
| 65TAR42.2 | 65 | 2.2 | Three | D.O.L. | 400 |
| 80TAR43.7 | 80 | 3.7 | Three | D.O.L. | 670 |
| 100TAR45.5 | 100 | 5.5 | Three | D.O.L. | 1000 |
| 125TAR47.5 | 125 | 7.5 | Three | D.O.L. | 1360 |
| 150TAR411 | 150 | 11 | Three | Star-Delta | 2000 |
| 150TAR415 | 150 | 15 | Three | Star-Delta | 2700 |
| 200TAR422 | 200 | 22 | Three | Star-Delta | 4000 |
| 250TAR430 | 250 | 30 | Three | Star-Delta | 5500 |
Why Choose Tsurumi
Tsurumi pumps are known worldwide for their reliability, ease of maintenance and long service life. With more than a century of engineering experience, Tsurumi is trusted by contractors, councils and operators across Australia. Customers also benefit from national spare-parts support and fast delivery.
Proven Tsurumi Reliability
Tsurumi pumps are used on job sites across Australia and around the world. The TAR series is supported by Tsurumi’s spare parts network and fast delivery.
