BER (Aerators)
BER Series

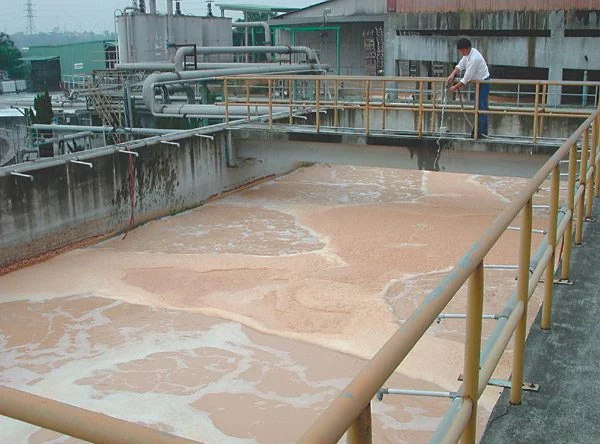

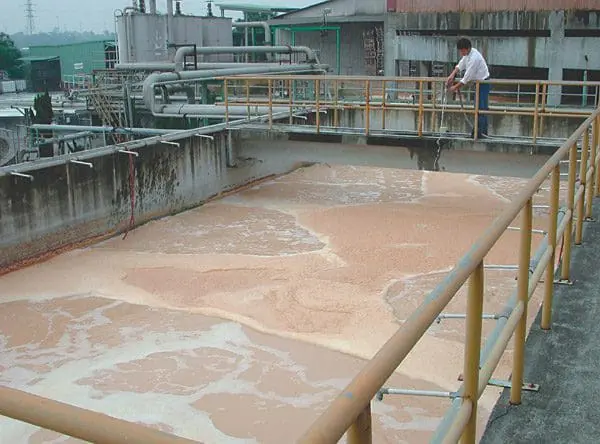

The BER-series is a submersible self-aspirating jet aerators combined a submersible pump with a venturi-jet based diffuser. The liquid flow generated by the submerged pump causes negative pressure to form around the nozzle, whereby drawing in air from above the water’s surface. With this jet injector mechanism, the aspirated air mixes with water and is ejected through the diffuser, simultaneously agitating and aerating the ponded water. The mixed air-water is ejected powerfully in one direction, which effectively agitates the water across a wide area.
| Air-inlet Bore(mm) | 25 – 50 |
|---|---|
| Motor Output(kW) | 0.75 – 5.5 |
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
Air Flow Rate – Water Depth Curves
(The air flow rates are expressed at the standard condition, i.e. temperature of 20℃, 1 atm and may vary by up to approximately 5%)
| Air-inlet Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) | Max. Water Depth*1 (m) |
|---|---|---|---|---|---|---|
| 25 | 8-BER | 0.75 | Three | D.O.L. | 20 | 4 / 3.5 |
| 32 | 15-BER | 1.5 | Three | D.O.L. | 20 | 4 |
| 50 | 22-BER | 2.2 | Three | D.O.L. | 35 | 4.5 |
| 50 | 37-BER | 3.7 | Three | D.O.L. | 35 | 5 |
| 50 | 55-BER | 5.5 | Three | D.O.L. | 35 | 6 |
*1 Max. water depth is the load limit of the motor. The load placed on the motor increase the deeper the submersible aerator is installed, therefore if the aerator is operated below the max. water depth, the overload will trip the motor protection device and stop the aerator from running continuously.

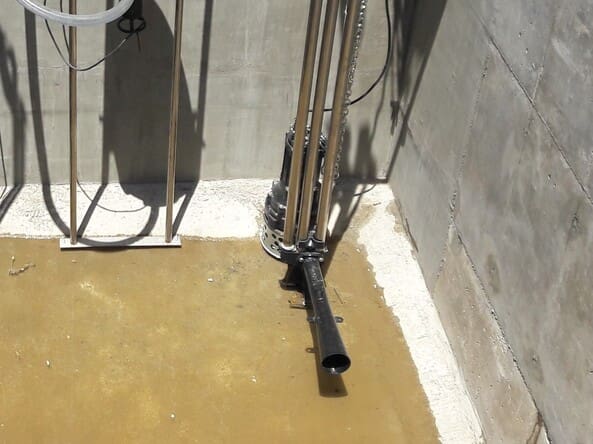

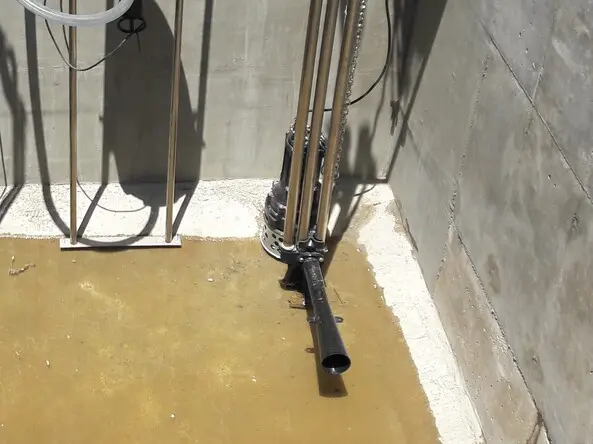

･Guide Rail Fitting model available.
