CZ (Cutter)
Max Flow Rate: 66.6L/sec (4m3/min)
Head Max: 33m
CZ Series
The CZ-series is a submersible smashing cutter pump specially designed for pumping sewage and wastewater containing various solid waste including fibrous materials. A unique design of heart-shaped suction cover equipped with a sharp-edged stationary blade along with an improved semi-open channel impeller having two sharp-edged vanes incorporates the scissor mechanism. This innovative scissor-like mechanism remarkably enhances the solid handling capabilities. It prevents pump clogging through crushing and shredding of solid objects.
In addition to that, the extended rotating guide equipped on impeller prevents the retention of solid waste at the central part of the impeller, thereby providing a smooth pumping operation.
| Discharge Bore(mm) | 100 |
|---|---|
| Motor Output(kW) | 2.2 – 15 |
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method |
|---|---|---|---|---|
| 100CZ42.2 | 100 | 2.2 | Three | D.O.L. |
| 100CZ43.7 | 100 | 3.7 | Three | D.O.L. |
| 100CZ45.5 | 100 | 5.5 | Three | D.O.L. |
| 100CZ47.5 | 100 | 7.5 | Three | D.O.L. |
| 100CZ411 | 100 | 11 | Three | Star-Delta |
| 100CZ415 | 100 | 15 | Three | Star-Delta |

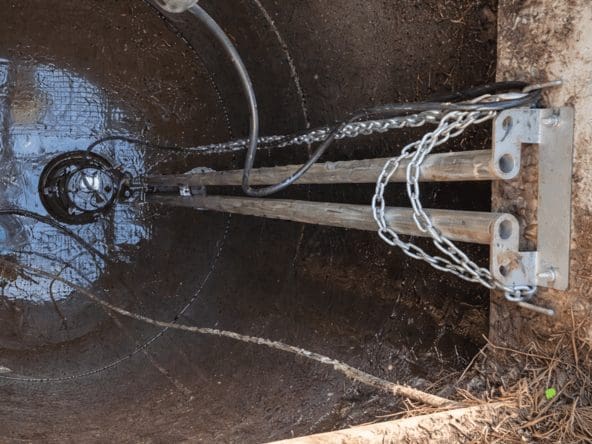

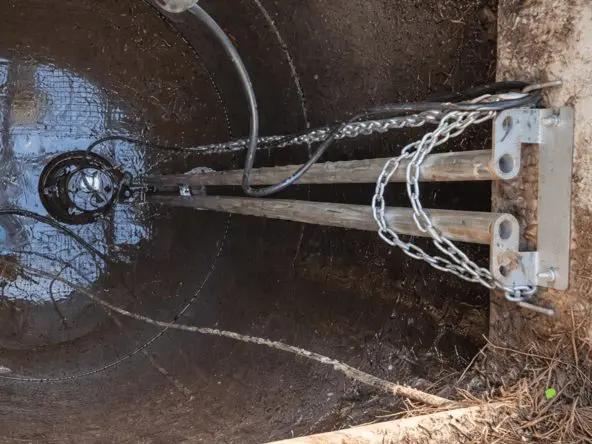

Guide Rail Fitting models available.
Related Case Studies
Related Products
B (Channel Impeller)

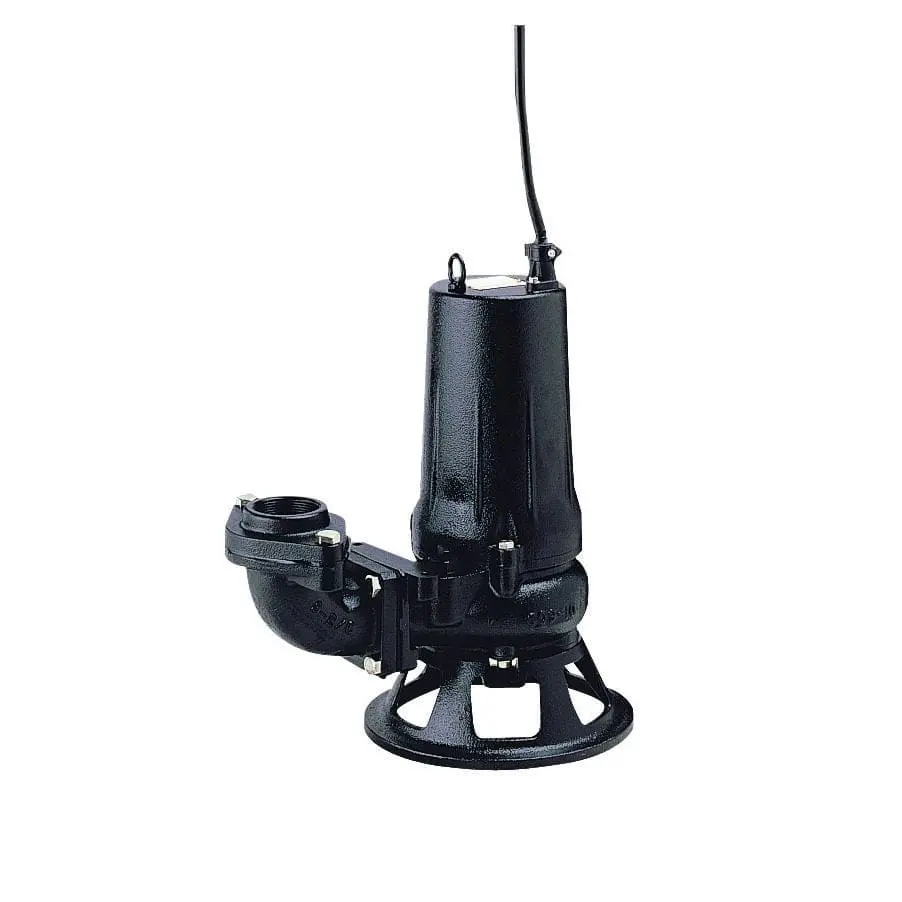

B Series The B-series is a basic heavy-duty, submersible sewage and wastewater pumps providing excellent solids matter passing capability with reliable operation. They offer a wide lineup of discharge bores ranging from 50 - 300 mm and motor outputs of...
