FHP Series – Water Treatment Floating Decanters
Supernatant discharge for SBR wastewater treatment systems

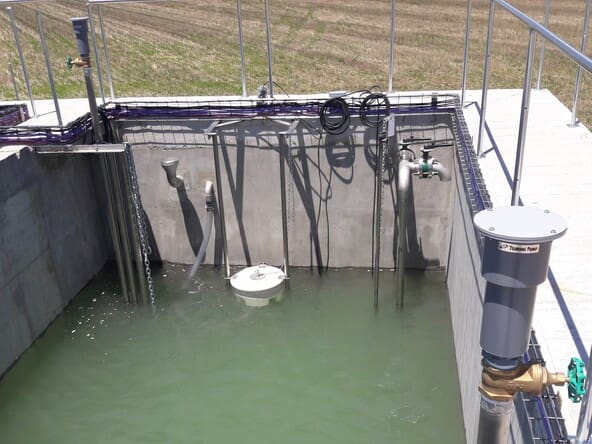

The FHP series is a floating decanter designed for discharging supernatant liquid in SBR. It consists of a submersible pump, sludge sensor, and a float.
The sludge sensor is a monitoring device that prevents unexpected inflow of sludge or other sediment and helps the pump solely discharge supernatant liquid. When the pump is not in operation, a check ball incorporated in the intake closes the suction opening by buoyancy, thus preventing the inflow of floating sludge into the suction casing.
Typical Applications
- Sludge condensation tanks
- Batch Reactors
- Process plants
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| FHP3-3T | 40 | 0.25 | Three | D.O.L. | 15 |
| FHP2-4T | 50 | 0.40 | Three | D.O.L. | 15 |
| FHP4-8T | 50 | 0.75 | Three | D.O.L. | 15 |
| FHP2-15T | 80 | 1.5 | Three | D.O.L. | 15 |
