Hoses
From $258.00 excl. GST (Price per Item)
Hoses

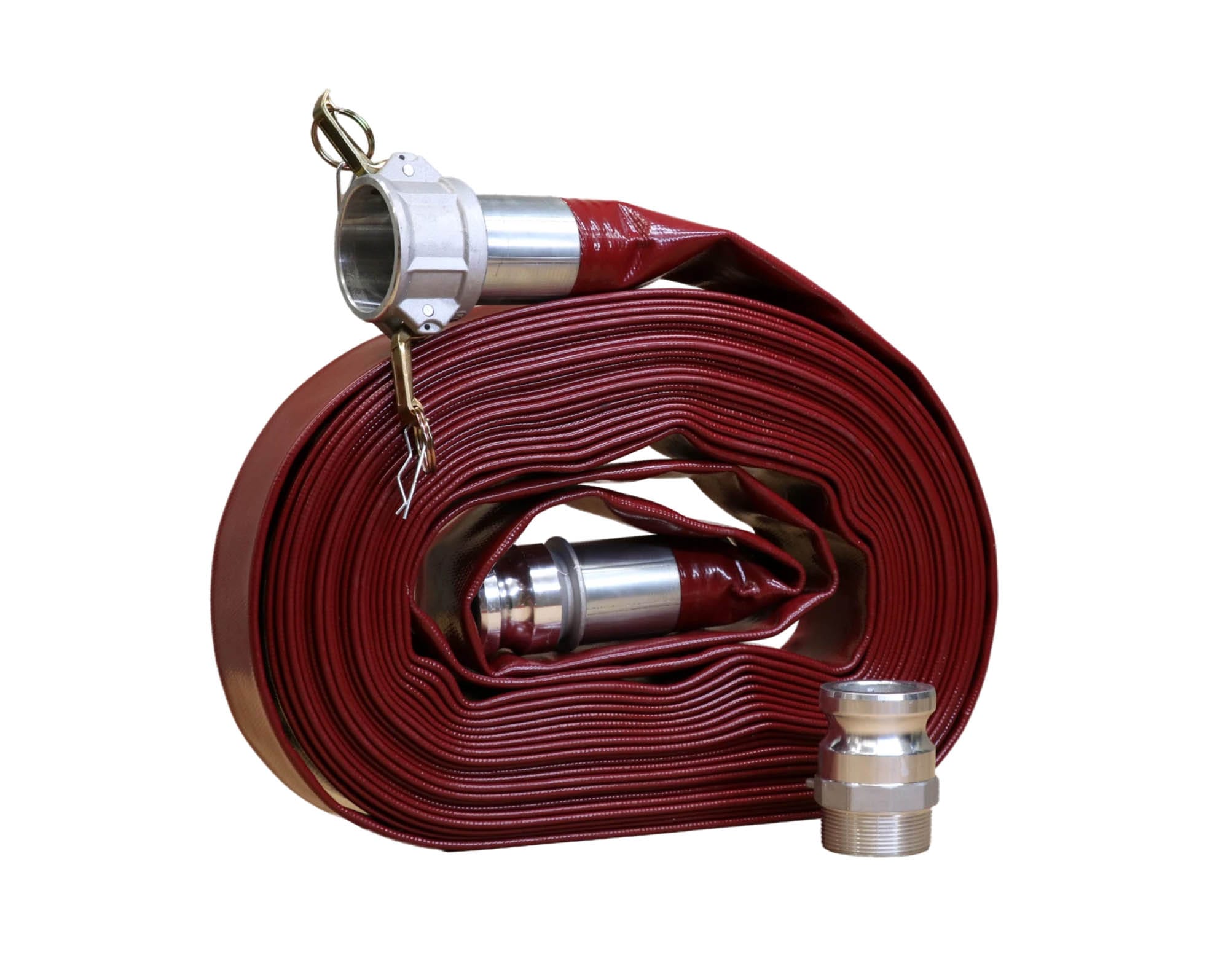

Exitflex red layflat hoses are well suited for water drainage at sites where water must be moved to significantly higher or lower elevations. It is ideally suited for use as a high pressure water transfer hose in the mining, construction & rental industries. The hoses are heavy duty and abrasion resistant. The inner tube is manufactured from red smooth PVC, reinforced by high tensile textile cord, and then the cover is red smooth PVC. The safety factor is 3:1.
The aluminium camlock fittings are 50mm (2″), Male or Female BSP Thread; pressure rating of 150PSI. Camlock castings are manufactured to A-A-59326E standards.
Selection Guide:
- TAU-108-001 (MBSP) Suits: HSD2.55S, HS2.4S, HSZ2.4S, HS2.75S, HSZ2.75S, 50UT2.4S, 50UTZ2.4S, 50UT2.75S, 50UTZ2.75S
- TAU-108-002 (FBSP) Suits: LB-480, LB-480A, LB-800, LB-800A, HS3.75S, LSC1.4S
