HS/HSZ
From $689.00 excl. GST (Price per Item)
HS/HSZ Series

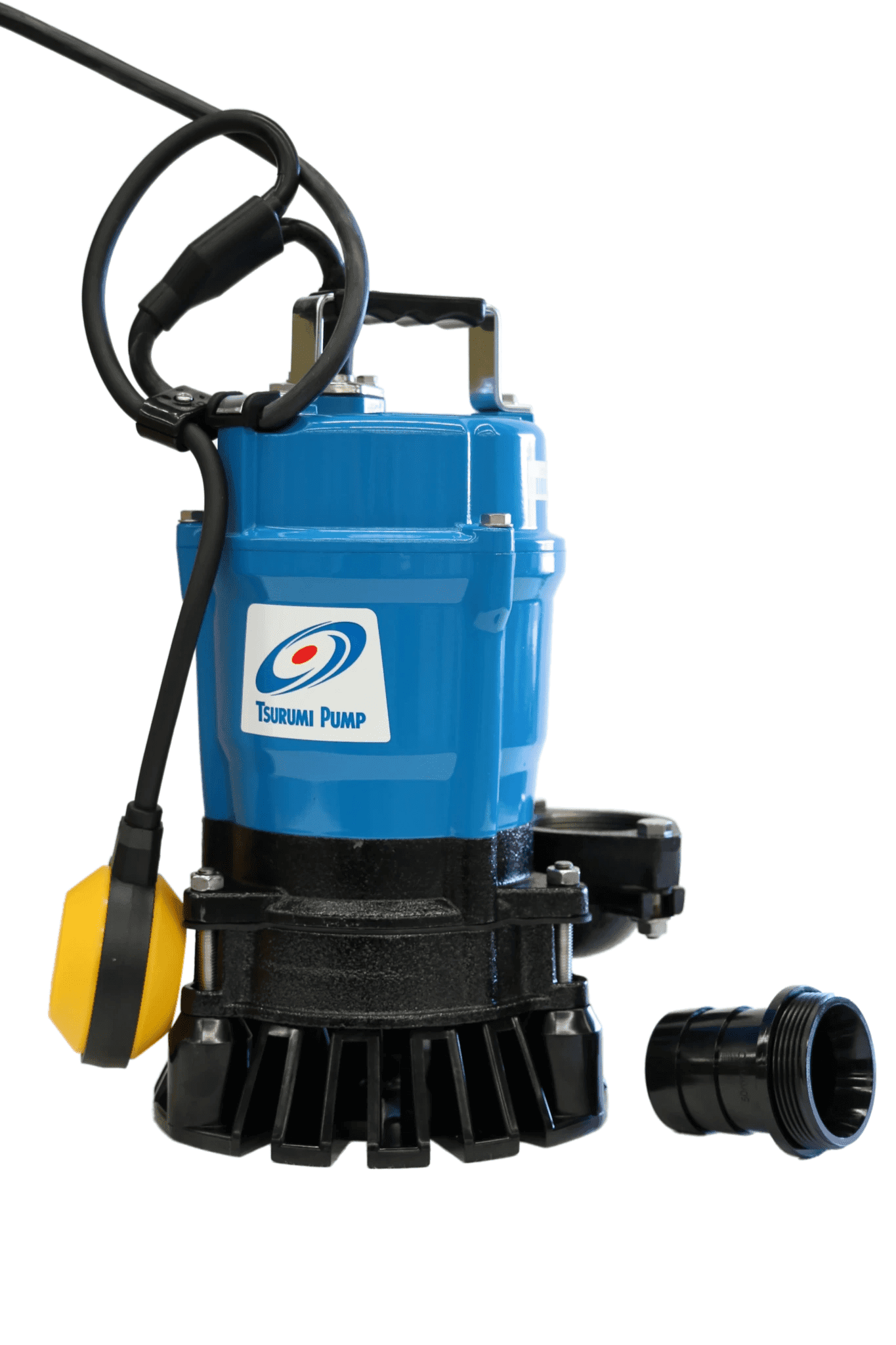

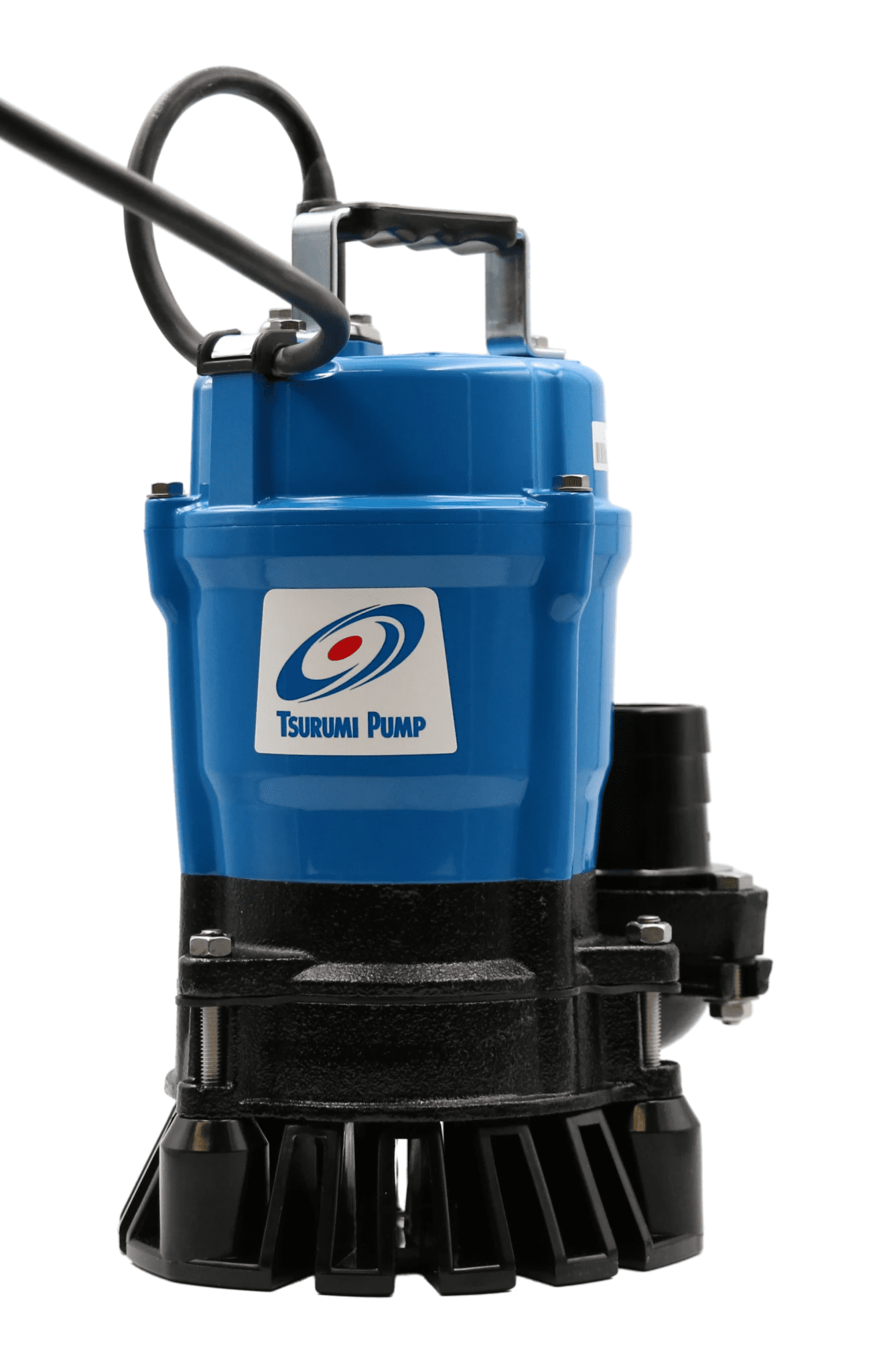

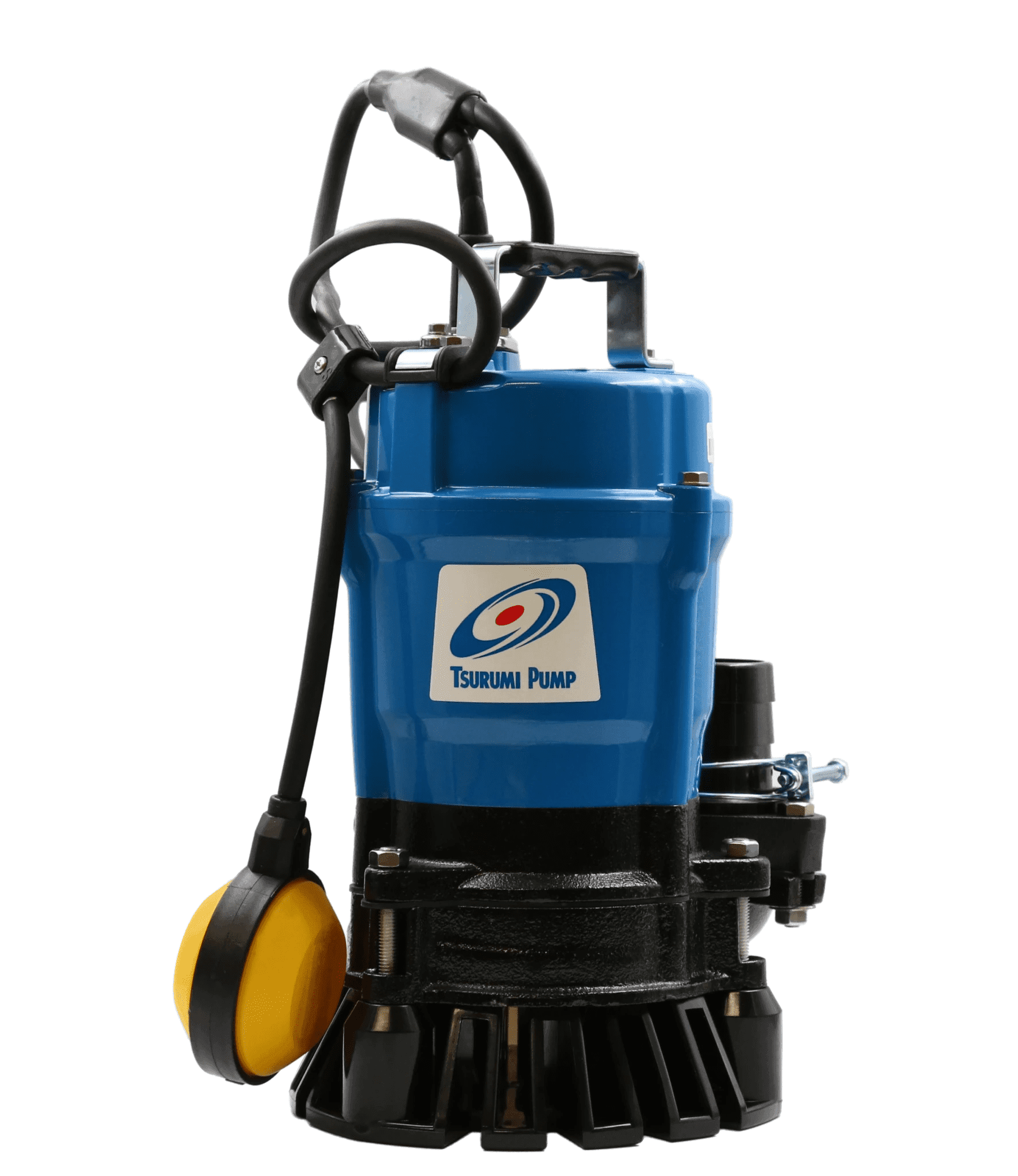

The HS-series is a submersible single-phase portable drainage pump and the HSZ-series is automatic. The automatic operation, controlled by a single float switch, reduces consumption and extends operating life. Though the HS & HSZ are a single-phase unit, the pumps have the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters. The shaft-mounted agitator prevents “Air Lock” that tends to take place on vortex or semi-vortex pumps.
| Discharge Bore(mm) | 50 or 80 |
|---|---|
| Motor Output(kW) | 0.4 or 0.75 |

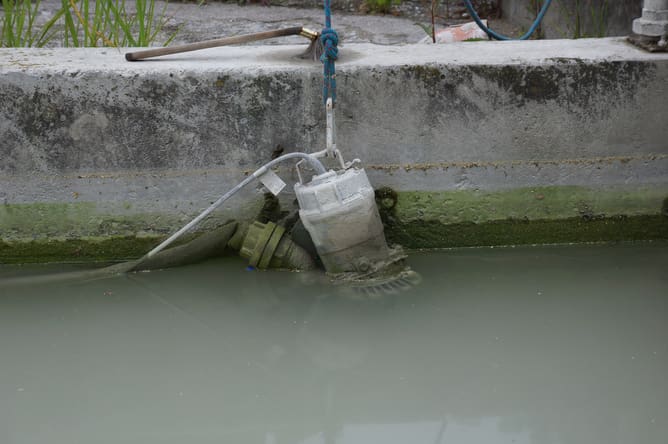

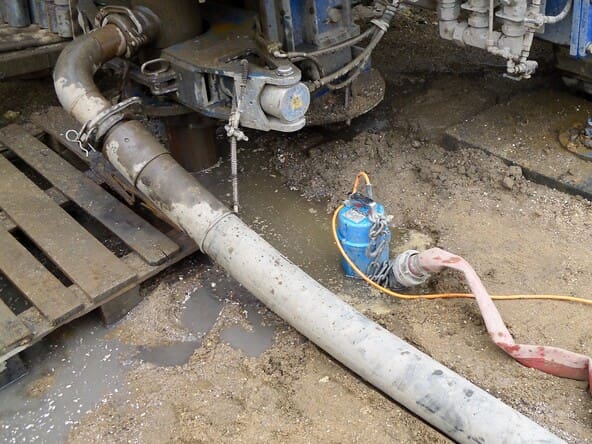

Applications:
- Residential, commercial, industrial wastewater and site drainage
- Foundation works
- Floodwater drainage
- Water features
- Raw water supply from lakes or rivers
- Sediment removal from small sumps or basin
Protector:
- Auto Cutout
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Type | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) | Max Flow (l/sec) | Max Head | Dry Weight (exc cable) |
|---|---|---|---|---|---|---|---|---|---|
HS2.4S  | Manual | 50 | 0.4 | Single | Capacitor Run | 7 | 3.33 | 12m | 11.3kg |
| HS2.75S | Manual | 50 | 0.75 | Single | Capacitor Run | 7 | 3.83 | 18m | 16.4kg |
| HS3.75S | Manual | 80 | 0.75 | Single | Capacitor Run | 7 | 5 | 18m | 16.8kg |
| HSZ2.4S | Auto (with float) | 50 | 0.4 | Single | Capacitor Run | 7 | 3.33 | 12m | 11.3kg |
| HSZ2.75S | Auto (with float) | 50 | 0.75 | Single | Capacitor Run | 7 | 3.83 | 18m | 16.4kg |
| HSZ3.75S | Auto (with float) | 80 | 0.75 | Single | Capacitor Run | 7 | 5 | 18m | 16.8kg |
Notes:
Icon identifies single phase pumps in compliance with AS/NZS 4417.1 & 2
