KTVE Series – Submersible Portable Drainage Pumps (Automatic)
Max Flow Rate: 16.3L/sec (1m3/min)
Head Max: 35m
Automatic high-head dewatering for construction, industrial and mining applications
The KTVE-series is an energy-saving submersible three-phase automatic portable drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Though the pump is a three-phase unit, it is designed to weigh lighter for portability, yet it can be used for pumping liquid found in ordinary construction and foundation works. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.
| Discharge Bore(mm) | 50 – 100 |
|---|---|
| Motor Output(kW) | 0.75 – 3.7 |
Features
- Electrode relay auto-control unit to detect water levels to automatically control the pump operation
- Top discharge, side flow design channels liquid around the motor to provide cooling, enabling reliable low-water-level operation over extended periods
- Anti-wicking cable entry system prevents water ingress, protecting internal components
- Tsurumi’s exclusive oil lifter device, and dual silicon carbide mechanical seals

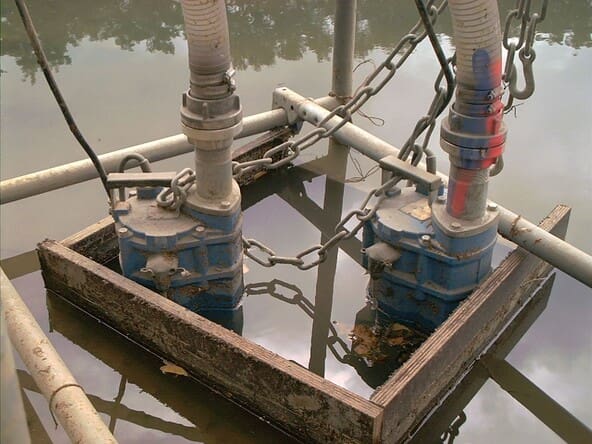

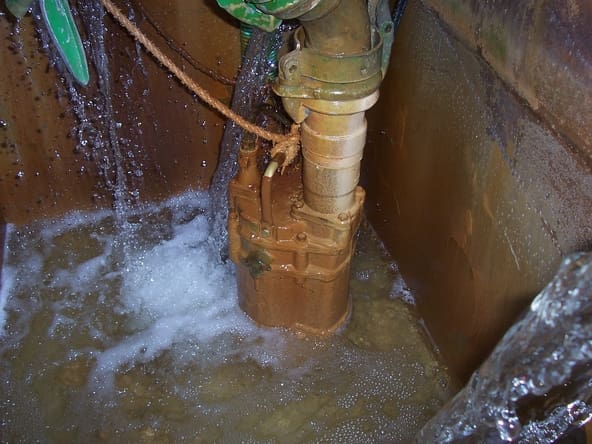

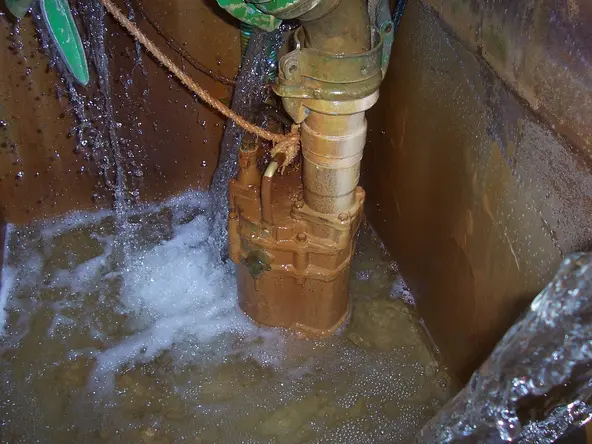

Typical Applications
- Civil infrastructure projects (road, rail, dam, and bridge)
- Construction work
- Dewatering
- Sumps & Pump Stations
- Water Transfer
- Turkey Nest Dams
- Industrial plants/Cement plants
- Mining
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| KTVE2.75 | 50 | 0.75 | Three | D.O.L. | 8.5 |
| KTVE21.5 | 50(80)* | 1.5 | Three | D.O.L. | 8.5 |
| KTVE22.2 | 50(80)* | 2.2 | Three | D.O.L. | 8.5 |
| KTVE33.7 | 80(100)* | 3.7 | Three | D.O.L. | 8.5 |
Why Choose Tsurumi
Tsurumi pumps are known worldwide for their reliability, ease of maintenance and long service life. With more than a century of engineering experience, Tsurumi is trusted by contractors, councils and operators across Australia. Customers also benefit from national spare-parts support and fast delivery.
Proven Tsurumi Reliability
Tsurumi pumps are used on job sites across Australia and around the world. The automatic KTVE series is designed for easy “set-and-forget” operation in drainage applications across mining and construction sites.
