KTZ (1000V)
Max Flow Rate: 66.6L/sec (4m3/min)
Head Max: 71m

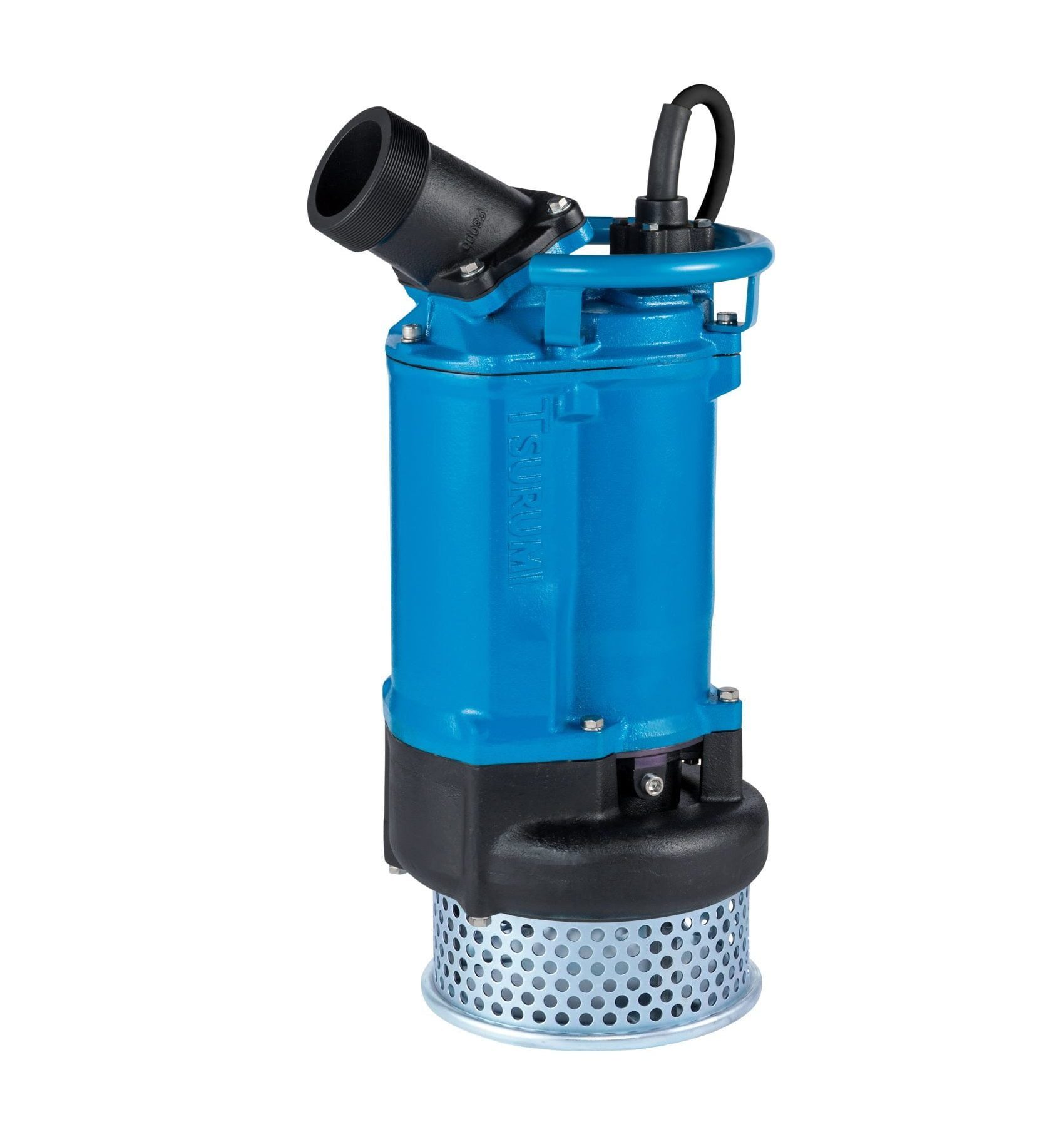

KTZ 1000V Series

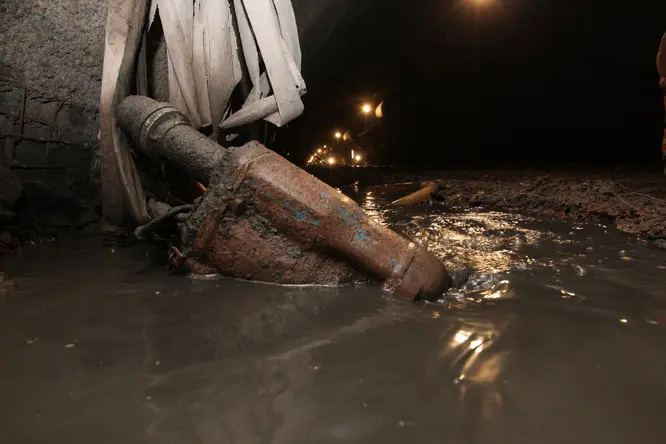

The KTZ 1000v series is a submersible three-phase cast iron high head heavy-duty drainage pump. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
| Discharge Bore(mm) | 50 – 150 |
|---|---|
| Motor Output(kW) | 2.2 – 15 |
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Discharge Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | KTZ22.2 1000V | 2.2 | Three | D.O.L. | 8.5 |
| 50 | KTZ23.7 1000V | 3.7 | Three | D.O.L. | 8.5 |
| 80 | KTZ32.2 1000V | 2.2 | Three | D.O.L. | 8.5 |
| 80 | KTZ33.7 1000V | 3.7 | Three | D.O.L. | 8.5 |
| 80 | KTZ35.5 1000V | 5.5 | Three | D.O.L. | 8.5 |
| 100 | KTZ43.7 1000V | 3.7 | Three | D.O.L. | 8.5 |
| 100 | KTZ45.5 1000V | 5.5 | Three | D.O.L. | 8.5 |
| 100 | KTZ47.5 1000V | 7.5 | Three | D.O.L. | 12 |
| 100 | KTZ411 1000V | 11 | Three | D.O.L. | 12 |
| 100 | KTZ415 1000V | 15 | Three | D.O.L. | 12 |
| 100 | KTZ422 1000V | 22 | Three | D.O.L. | 8.5 |
| 150 | KTZ67.5 1000V | 7.5 | Three | D.O.L. | 20 |
| 150 | KTZ611 1000V | 11 | Three | D.O.L. | 20 |
| 150 | KTZ615 1000V | 15 | Three | D.O.L. | 20 |
| 150 | KTZ622 1000V | 22 | Three | D.O.L. | 12 |
Accessories available upon request.
