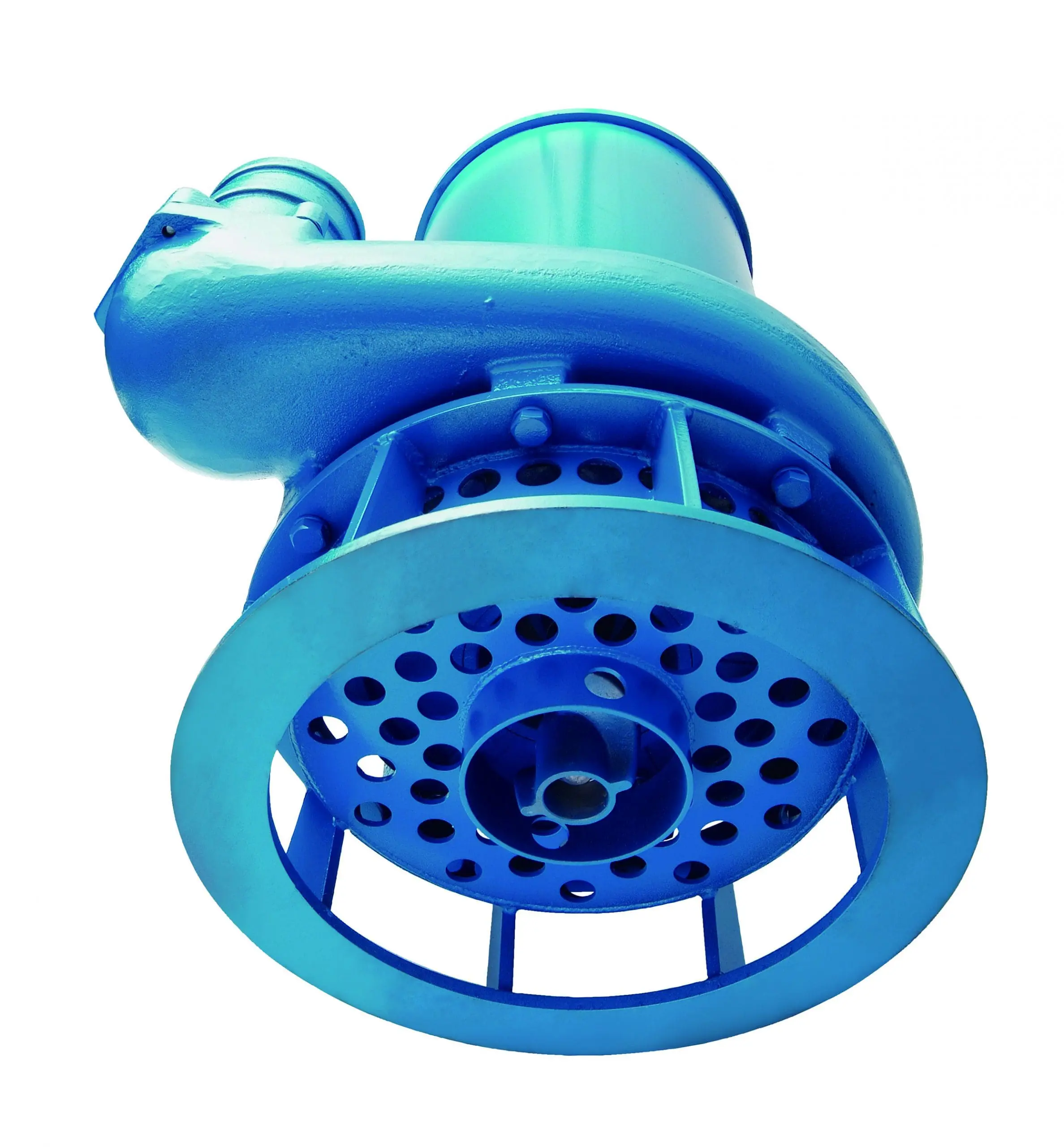

GPN 1000V Series – Submersible Underground Mining Slurry Pumps
Max Flow Rate: 150L/sec (9m3/min)
Head Max: 35m
1000V heavy-duty slurry pumping for mining and high-capacity dewatering applications
The GPN 1000V series is a submersible three-phase high power and extra heavy-duty slurry pump. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The other wear parts such as the impeller and the suction plate are also made of high-chromium cast iron for extra durability. The side discharge, spiral design allows smoother passage of the sucked solid matters. The motor is cooled by a water jacket that assures efficient motor cooling even when it operates with its motor exposed to air. The use of guide rail fitting system improves convenience in the facilities such as, iron works, ready-mixed concrete plants, and wastewater treatment plants where the pump is to be installed with a fixed discharge piping.
| Discharge Bore(mm) | 100 – 150 |
|---|---|
| Motor Output(kW) | 11 – 22 |
Typical Applications
- Underground Sumps & Pump Stations
- Fish Tanks (Water Containment Tanks)
- Water Transfer
- Tunnelling and underground works
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| GPN411 1000V | 100 | 11 | Three | D.O.L. | 30 |
| GPN422 1000V | 100 | 22 | Three | D.O.L. | 30 |
| GPN622 1000V | 150 | 22 | Three | D.O.L. | 30 |
Why Choose Tsurumi
Tsurumi pumps are known worldwide for their reliability, ease of maintenance and long service life. With more than a century of engineering experience, Tsurumi is trusted by contractors, councils and operators across Australia. Customers also benefit from national spare-parts support and fast delivery.
Proven Tsurumi Reliability
Trusted on demanding sites across Australia and globally, the Tsurumi GPN 1000V series is well suited to underground mining applications, with support from Tsurumi’s national spare parts network and fast delivery to help keep operations running on schedule.
