KTZ 1000V Series – Submersible Underground Mining Drainage Pumps
High-head dewatering for mining underground 1000V applications
The KTZ 1000V series is a submersible three-phase cast iron high head heavy-duty drainage pump. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
| Discharge Bore(mm) | 50 – 150 |
|---|---|
| Motor Output(kW) | 2.2 – 15 |
Features
- 1000V Cable for demanding underground mining applications, improving operational efficiency
- Multi-directional discharge which can be set to vertical or inclined to suit the site layout
- High-chromium impeller designed for superior wear resistance in abrasive applications, delivering extended service life
- Top discharge, side flow design channels liquid around the motor to provide cooling, enabling reliable low-water-level operation over extended periods
- Tsurumi’s exclusive oil lifter device, and dual silicon carbide mechanical seals
Typical Applications
- Underground Mining
- Sumps & Pump Stations
- Fish Tanks (Water Containment Tanks)
- Water Transfer
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| KTZ22.2 1000V | 50 | 2.2 | Three | D.O.L. | 8.5 |
| KTZ23.7 1000V | 50 | 3.7 | Three | D.O.L. | 8.5 |
| KTZ32.2 1000V | 80 | 2.2 | Three | D.O.L. | 8.5 |
| KTZ33.7 1000V | 80 | 3.7 | Three | D.O.L. | 8.5 |
| KTZ35.5 1000V | 80 | 5.5 | Three | D.O.L. | 8.5 |
| KTZ43.7 1000V | 100 | 3.7 | Three | D.O.L. | 8.5 |
| KTZ45.5 1000V | 100 | 5.5 | Three | D.O.L. | 8.5 |
| KTZ47.5 1000V | 100 | 7.5 | Three | D.O.L. | 12 |
| KTZ411 1000V | 100 | 11 | Three | D.O.L. | 12 |
| KTZ415 1000V | 100 | 15 | Three | D.O.L. | 12 |
| KTZ422 1000V | 100 | 22 | Three | D.O.L. | 8.5 |
| KTZ67.5 1000V | 150 | 7.5 | Three | D.O.L. | 20 |
| KTZ611 1000V | 150 | 11 | Three | D.O.L. | 20 |
| KTZ615 1000V | 150 | 15 | Three | D.O.L. | 20 |
| KTZ622 1000V | 150 | 22 | Three | D.O.L. | 12 |
Accessories available upon request.
Why Choose Tsurumi
Tsurumi pumps are known worldwide for their reliability, ease of maintenance and long service life. With more than a century of engineering experience, Tsurumi is trusted by contractors, councils and operators across Australia. Customers also benefit from national spare-parts support and fast delivery.
Proven Tsurumi Reliability

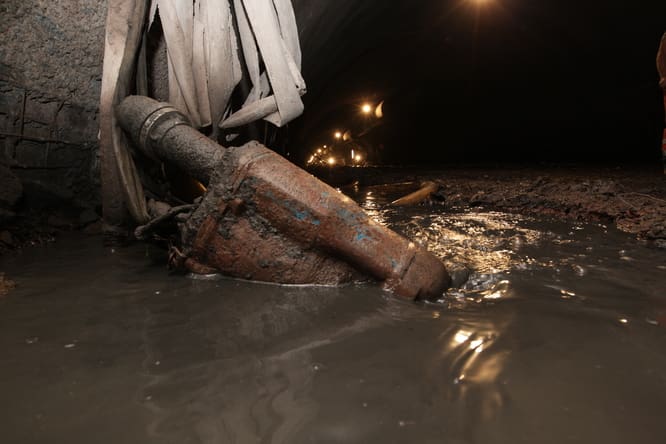

Tsurumi pumps are used on job sites across Australia and around the world. The KTZ 1000V series is ideally suited to underground mining applications, with reliable performance and the support of Tsurumi’s national spare parts network.
