LSC
Max Flow Rate: 2.8L/sec (0.17m3/min)
Head Max: 11m
LSC Series

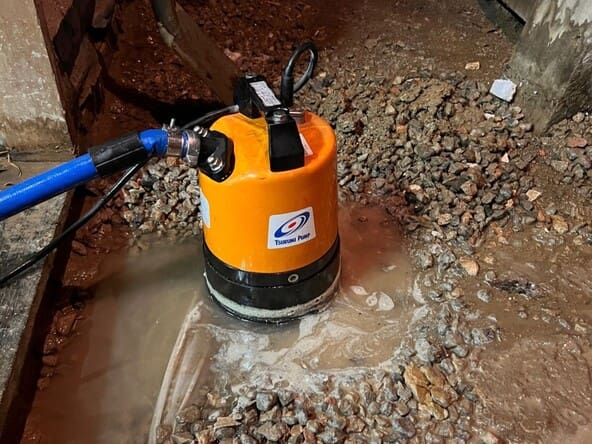

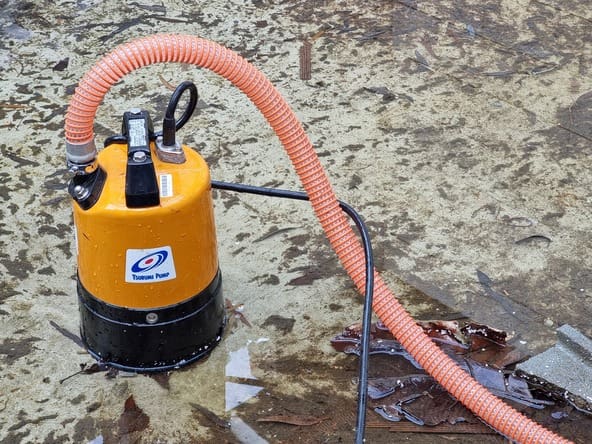

The LSC pump is a submersible single-phase portable residue drainage pump. The specially designed bottom plate enables the pump to drain down to 1mm water level. It has a swing check valve that prevents reverse-flow of the sucked water when the pump stops its operation. The rubber stand protects the floor surface from scratching. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
| Discharge Bore(mm) | 25 |
|---|---|
| Motor Output(kW) | 0.48 |
Applications:
- Residential, commercial, industrial residual drainage
- Floodwater drainage
- Cleaning works
- Basement sump
- Decorative waterfalls and fountains
Protector:
- Auto Cutout
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Type | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Max Flow (l/sec) | Max Head | Dry Weight (exc cable) |
|---|---|---|---|---|---|---|---|---|
LSC1.4S  | Manual | 25 | 0.48 | Single | Capacitor Run | 2.83 | 11m | 12kg |
Notes:
Icon identifies single phase pumps in compliance with AS/NZS 4417.1 & 2
View how the LSC operates.
