MR (Mixer)

Flow Rate: N/A
Head Max: N/A

MR Series

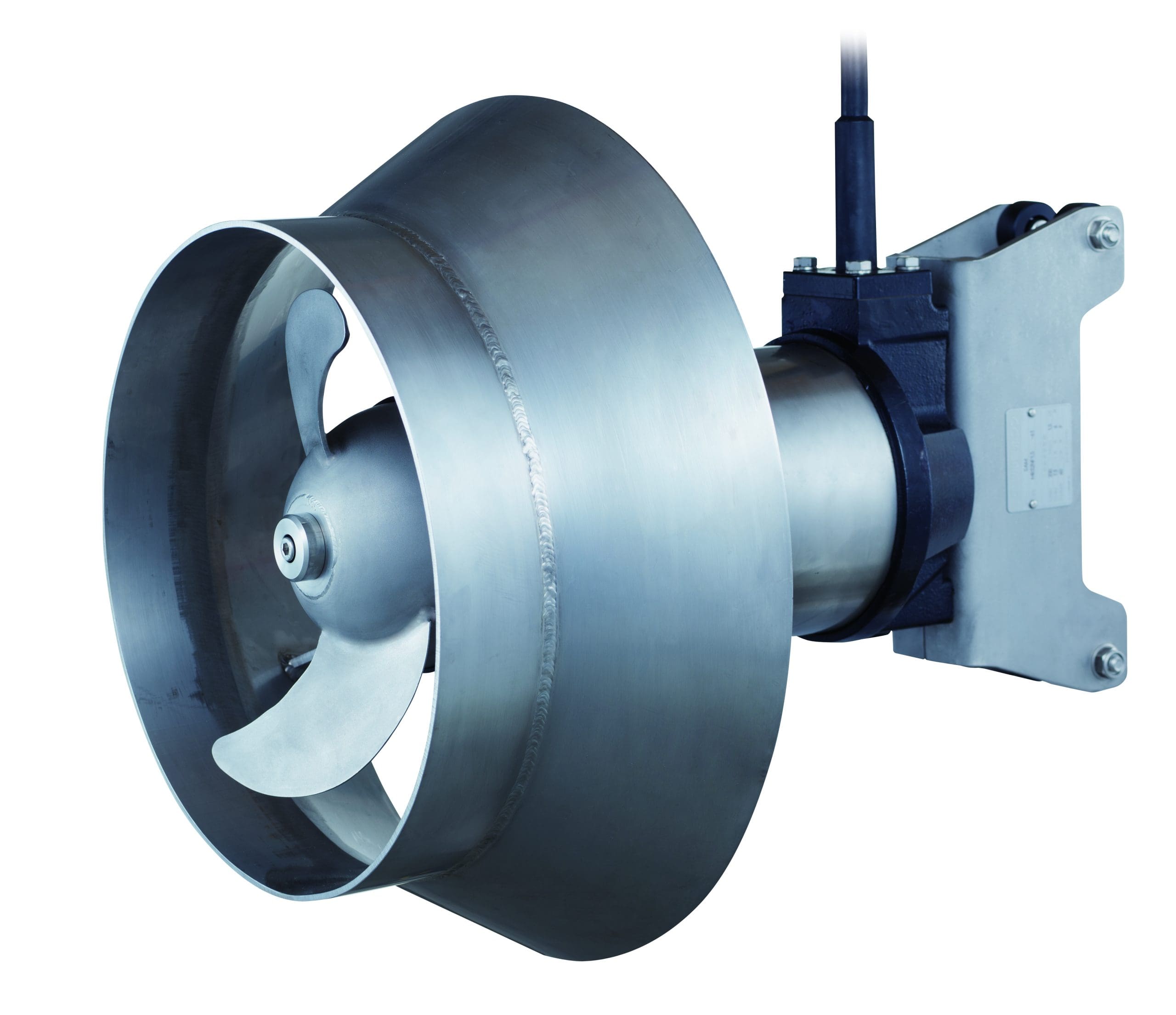

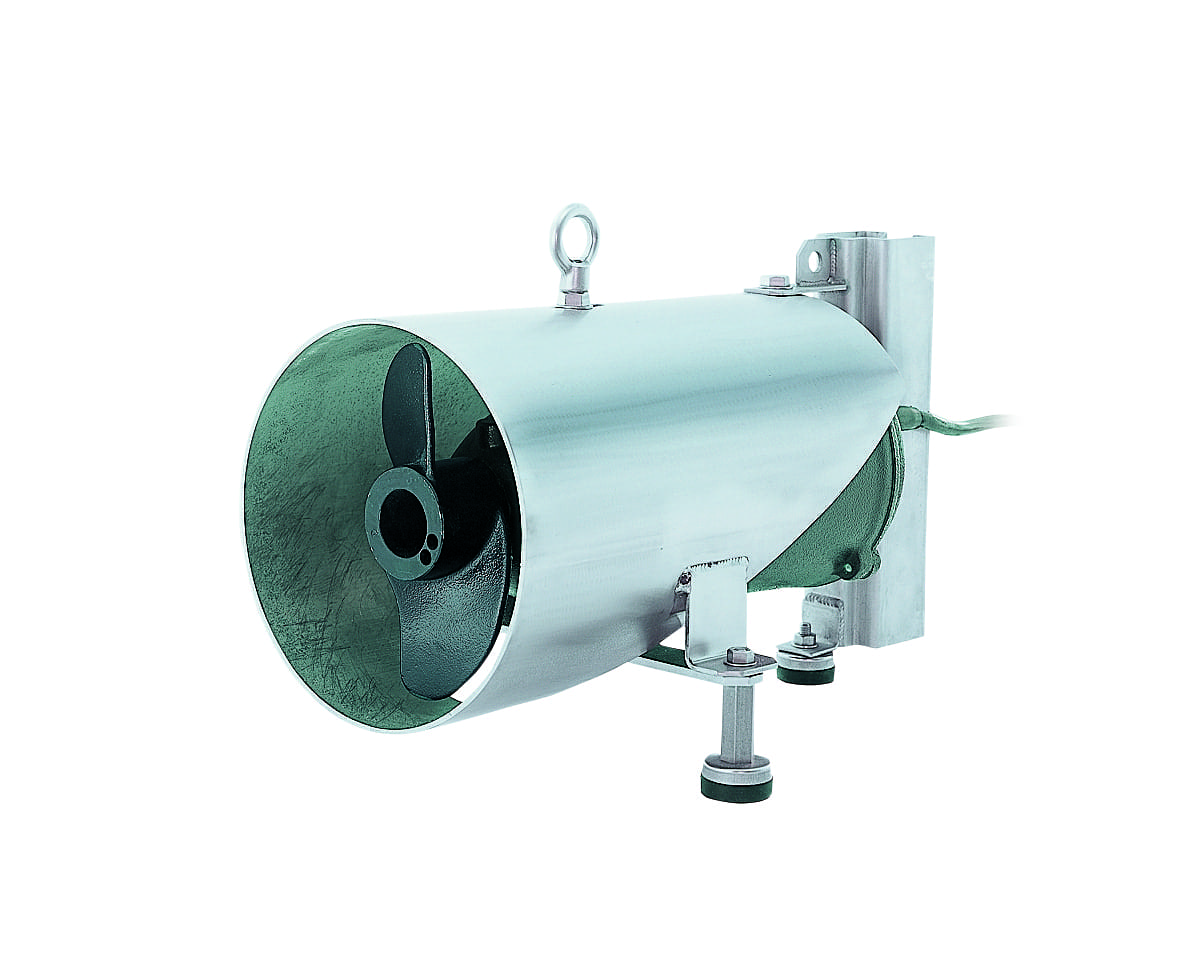

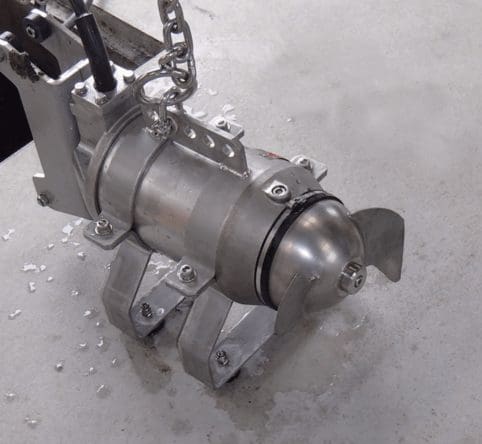

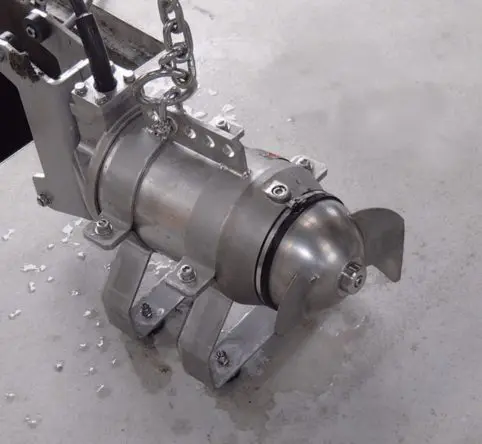

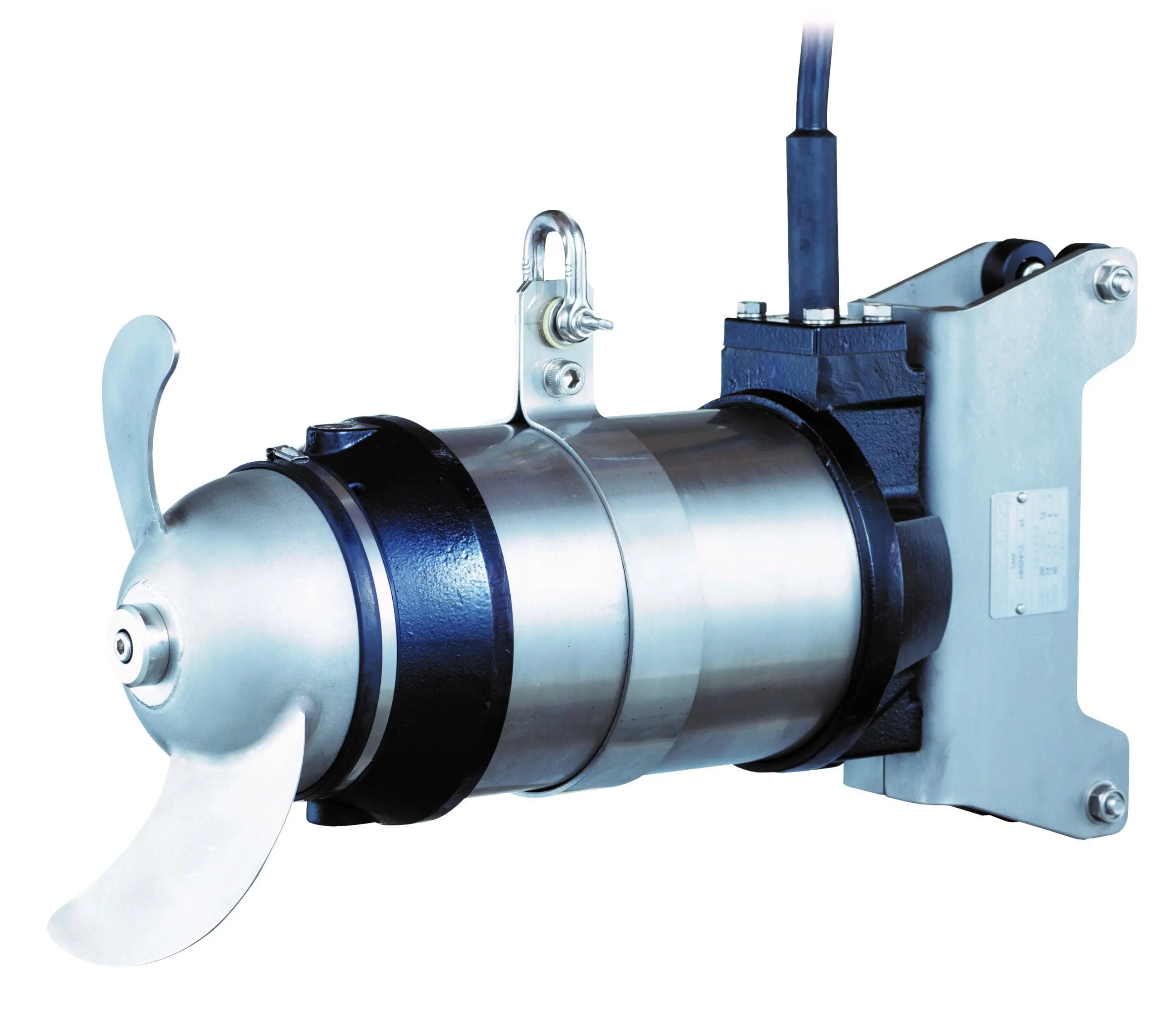

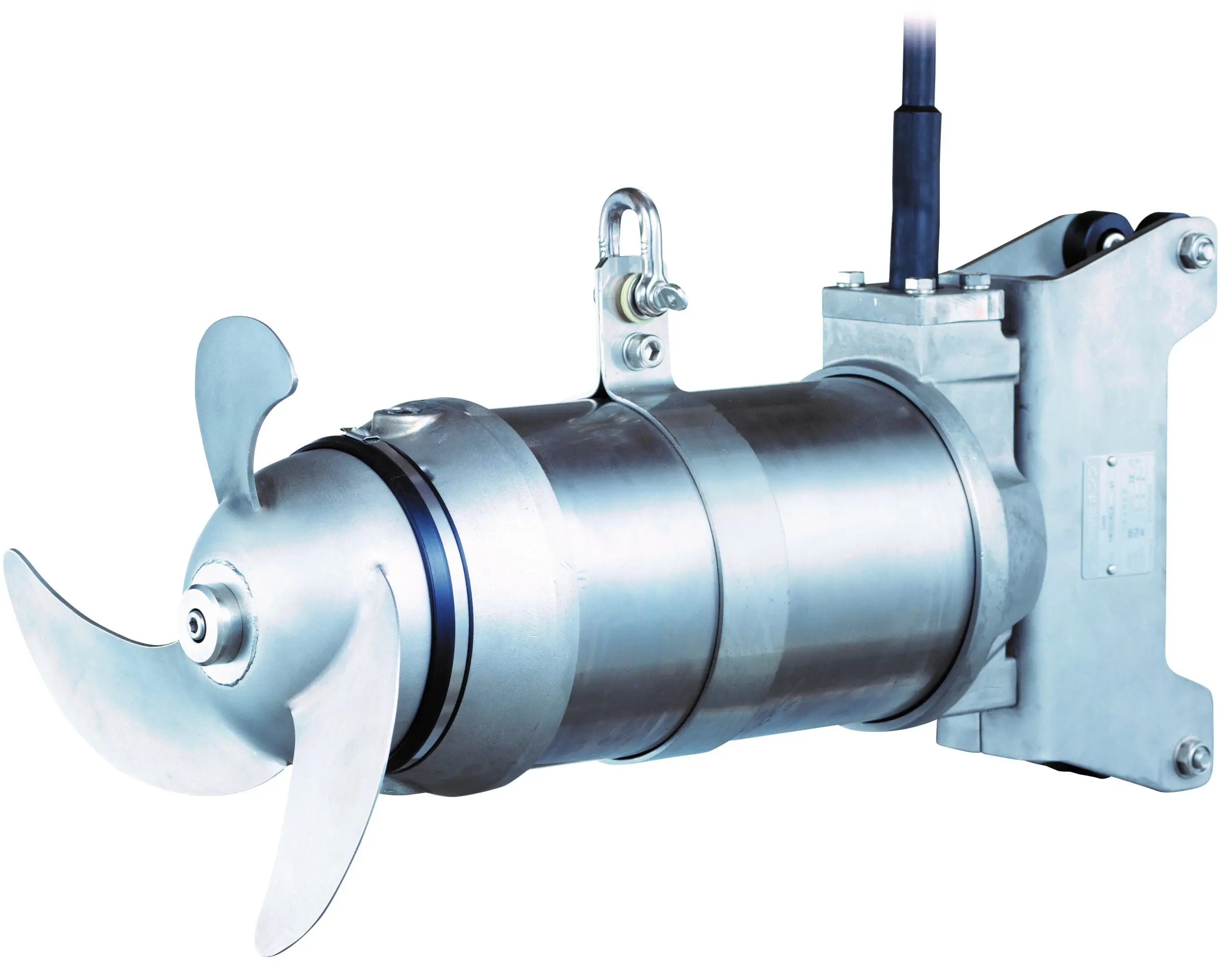

The MR-series is a submersible mixer designed to generate a powerful jet of water using a propeller that is specially shaped for high efficiency and directly coupled to a submersible motor. It can be used for either aerobic/aeration treatment that mixes water and air, or anaerobic treatment that does not mix air into the water. The MR-series is available in wide variations, including cast iron or cast stainless steel construction, as well as configured without a guide ring that enhances the mixing effect or with it, which increases the flow regulating effect. When used in combination with lifting equipment (optional), the mixer can be easily inspected and serviced without entering the tank.





Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data




ModelMotor
Output
(kW)
Propeller Rotation Speed (min-1)Flow Rate (m3/min)Propeller Nominal Diameter (mm)
MRL21GF2500.2514201.91155
MRL21GF4000.4014202.67185
MRL21GF7500.7514103.44190
MRL33GF1.51.509108.10300
MR21NF4000.4014202.80185
MR21NF7500.7514103.60190
MR31NF1.51.509107.50300
MR32NF2.82.8091511.80300
MR61NR5.05.0048327600
