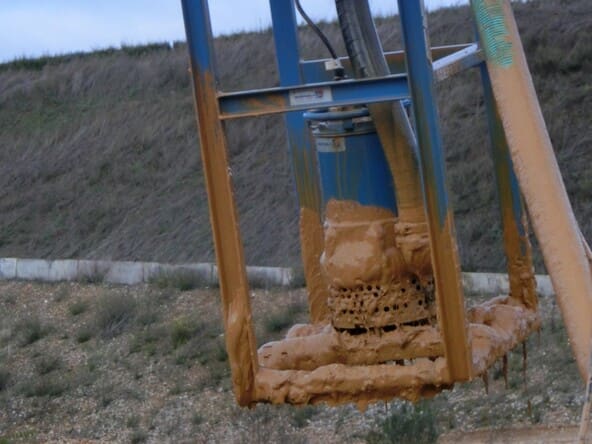

NKZ
Max Flow Rate: 65.8L/sec (3.9m3/min)
Head Max: 28.8m
NKZ Series
The NKZ-series is a submersible three-phase cast iron heavy-duty slurry pump driven by a 4-pole motor. It is equipped with an agitator that assists smooth suction of settled matters. The side discharge, spiral design allows smoother passage of the sucked solid matters. The motor is cooled by a water jacket that assures efficient motor cooling even when it operates with its motor exposed to air. The use of guide rail fitting system improves convenience in the facilities such as, iron works, ready-mixed concrete plants, and wastewater treatment plants where the pump is to be installed with a fixed discharge piping.
| Discharge Bore(mm) | 80 – 150 |
|---|---|
| Motor Output(kW) | 2.2 – 11 |
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Discharge Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| 80 | NKZ32.2 | 2.2 | Three | D.O.L. | 30 |
| 80 | NKZ33.7 | 3.7 | Three | D.O.L. | 30 |
| 80 | NKZ35.5 | 5.5 | Three | D.O.L. | 20 |
| 100 | NKZ43.7 | 3.7 | Three | D.O.L. | 30 |
| 100 | NKZ45.5 | 5.5 | Three | D.O.L. | 30 |
| 100 | NKZ411 | 11 | Three | D.O.L. | 20 |
| 150 | NKZ611 | 11 | Three | D.O.L. | 30 |
Guide Rail Fitting model available.
Related Products
GPN (415V)
GPN Series The GPN-series is a submersible three-phase high power and extra heavy-duty slurry pump driven by a 4-pole or 6-pole motor. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The...
Max Flow Rate: 150L/sec (9m3/min)
Head Max: 35m

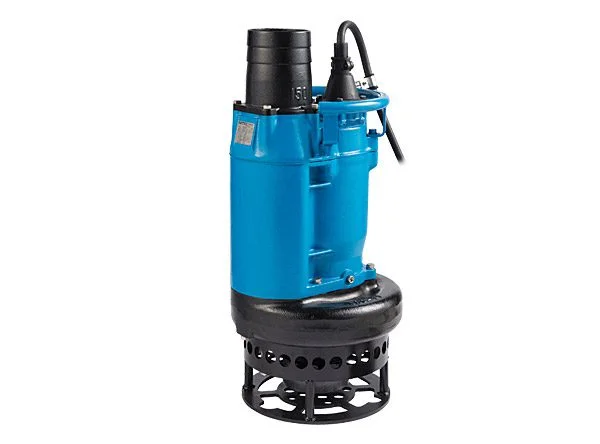

KRS/KRD
KRS/KRD Series The KRS/KRD-series of slurry-handling type is a submersible three-phase cast iron heavy-duty slurry pump driven by a 4-pole motor. It is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The other...
Max Flow Rate: 80L/sec (4.8m3/min)
Head Max: 31m

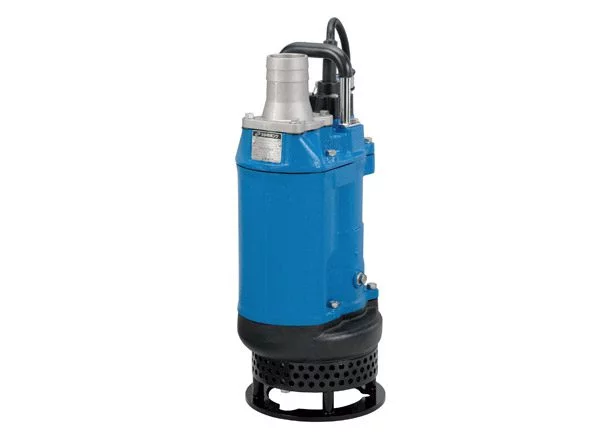

KTD
