PU
Max Flow Rate: 15.8L/sec (0.95m3/min)
Head Max: 23.9m
PU Series

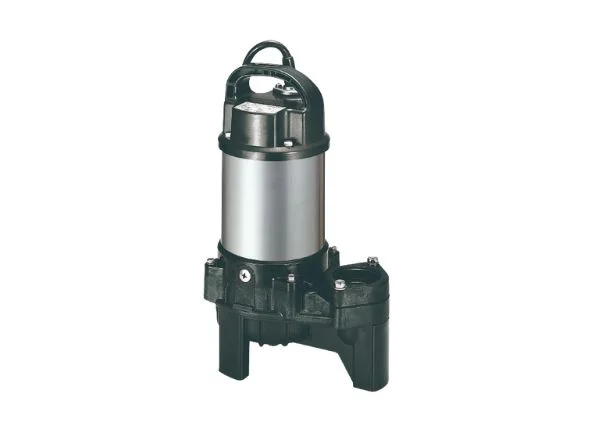

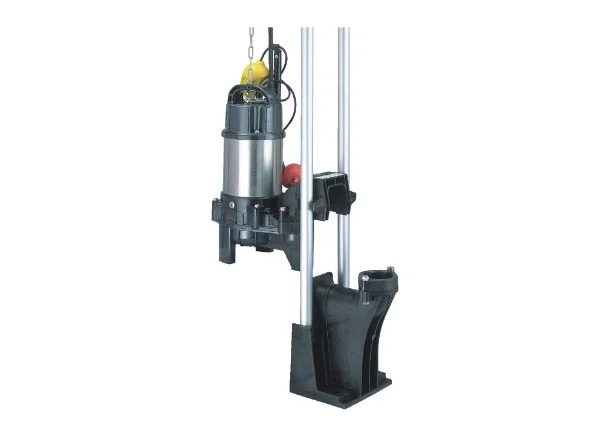

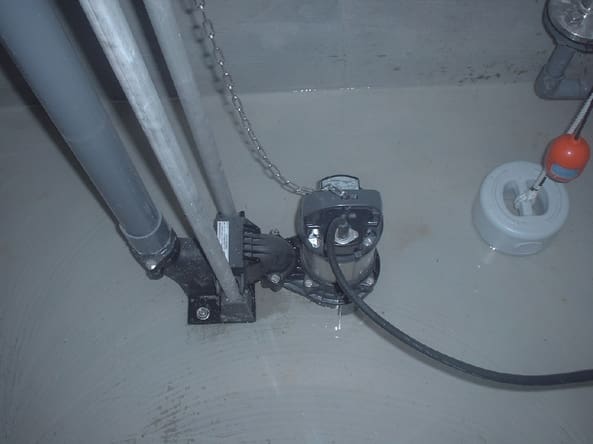

The PU-series is a submersible vortex pump designed for raw sewage, wastewater, and liquid carrying solid matters. It is made of resin and 304 stainless steel and excellent in corrosion-resistance. The vortex mechanism provides practically unchokable operation in sewage pumping. Liquid paraffin is used for the lubricating oil, which widens the application of the pump to decorative waterfalls, fishponds, aquaculture, etc.
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Discharge Bore (mm) | Manual Model | Automatic Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|---|
| 40 | 40PU2.15 | 40PUA2.15 | 0.15 | Three | D.O.L. | 35 |
| 40 | 40PU2.25S  | 40PUA2.25S | 0.25 | Single | Capacitor Run | 35 |
| 40 | 40PU2.25 | 40PUA2.25 | 0.25 | Three | D.O.L. | 35 |
| 50 | 50PU2.4S | 50PUA2.4S | 0.4 | Single | Capacitor Run | 35 |
| 50 | 50PU2.4 | 50PUA2.4 | 0.4 | Three | D.O.L. | 35 |
| 50 | 50PU2.75S | 50PUA2.75S | 0.75 | Single | Capacitor Run | 35 |
| 50 | 50PU2.75 | 50PUA2.75 | 0.75 | Three | D.O.L. | 35 |
| 80 | 80PU21.5 | 80PUA21.5 | 1.5 | Three | D.O.L. | 46 |
| 80 | 80PU22.2 | 80PUA22.2 | 2.2 | Three | D.O.L. | 46 |
| 80 | 80PU23.7 | 80PUA23.7 | 3.7 | Three | D.O.L. | 46 |
Notes:
Icon identifies single phase pumps in compliance with AS/NZS 4417.1 & 2- Auto-alternation models available-refer to catalogue for listing

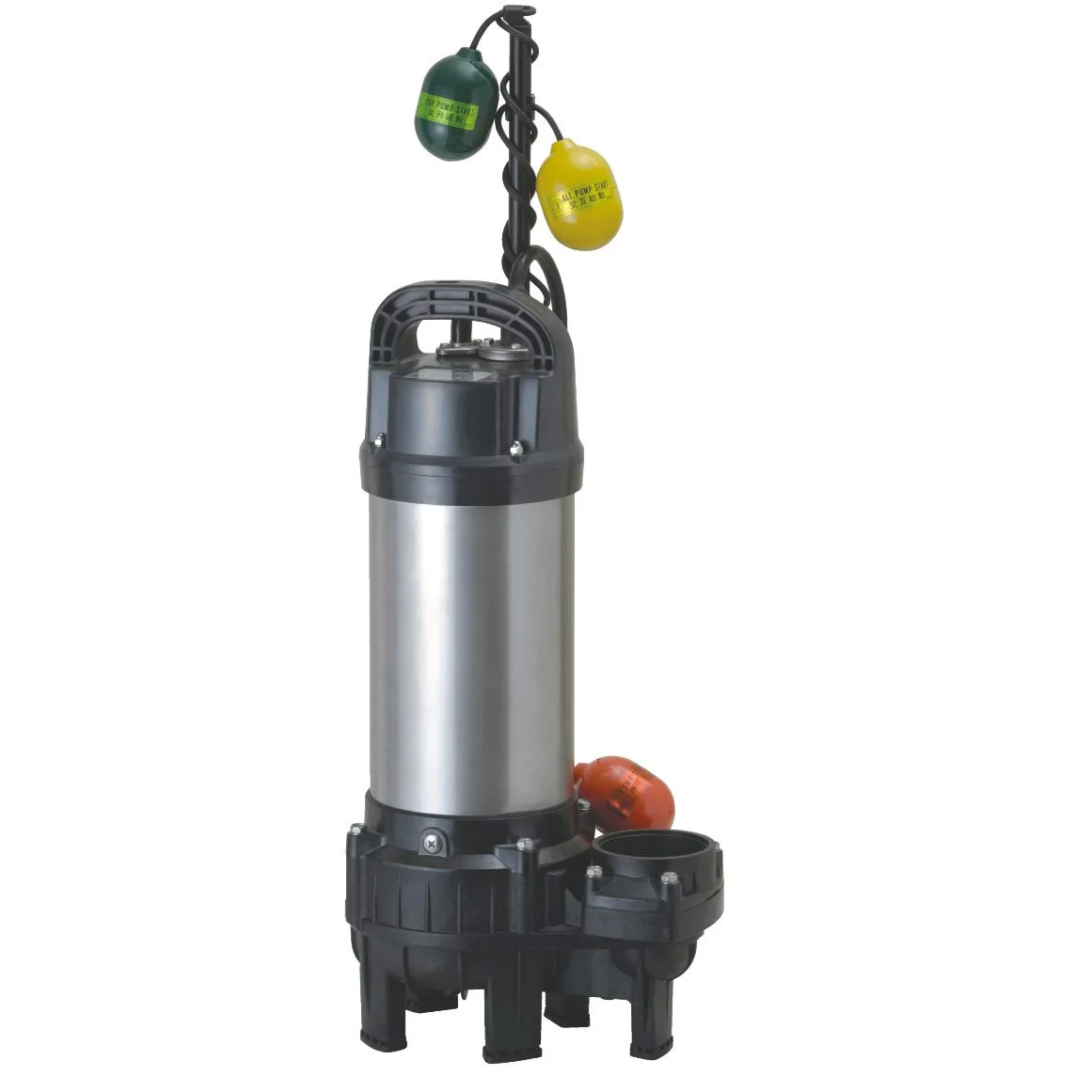

View how the automatic & auto-alternation models work.
Related Products
PN

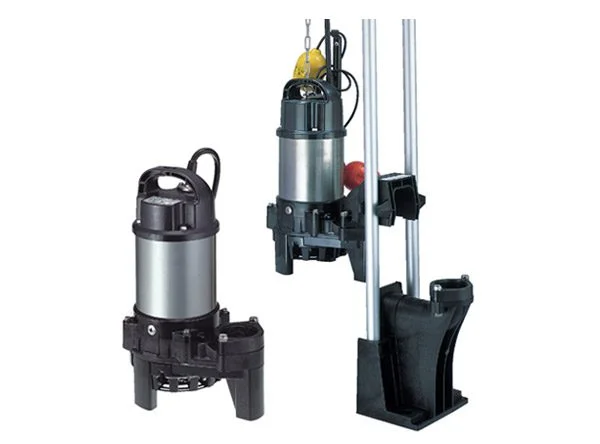

PN Series The PN-series is made of special resin and stainless steel, it is corrosion-resistant and lightweight. It is a semi-vortex pump, which is constructed of a vortex impeller and low-height volute casing. The semi-vortex pump design with moderate solids...
