TRN Series – Submersible Self-Aspirating Aerators
Self-aspirating aeration and mixing for efficient wastewater treatment
The TRN-series is a submersible self-aspirating aerator designed for aeration and mixing of wastewater. The liquid flow generated by Tsurumi’s special semi-open impeller causes negative pressure to form on the backside of the impeller vanes and draw in air from above the water’s surface. The aspirated air, mixed with water viciously by mechanical forces inside the impeller and guide vane, transforms into tiny bubbles. Moreover, the mixed flow of air and water is evenly discharged in multiple directions along the circumference. The compounded action of the air lift and convective currents that are generated in the process makes aeration and agitation very efficient and increases the amount of oxygen dissolved in the water.
Application to Deeper Installation
Each aerator has a limit in its installation depth, but Tsurumi provides an optional device by which the aerator can be installed in deeper places. It is a simple stand or a stand with draft tube. Details are available on request.
| Discharge Bore(mm) | 32 – 150 |
|---|---|
| Motor Output(kW) | 0.75 – 40 |
Typical Applications
- Mixing/holding tanks
- Fish Tanks (Water Containment Tanks)
- Sewage Treatment Plants/Systems
- Equalization tank
- Reaction tank
- Batch Reactor
- Abattoirs
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Air-inlet Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) | Max. Water Depth*1 (m) |
|---|---|---|---|---|---|---|
| 32TRN2.75 | 32 | 0.75 | Three | D.O.L. | 10 | 3.5 |
| 32TRN21.5 | 32 | 1.5 | Three | D.O.L. | 12 | 3.5 |
| 50TRN42.2 | 50 | 2.2 | Three | D.O.L. | 12 | 3.6 |
| 50TRN43.7 | 50 | 3.7 | Three | D.O.L. | 12 | 4 |
| 50TRN45.5 | 50 | 5.5 | Three | D.O.L. | 15 | 4 |
| 80TRN47.5 | 80 | 7.5 | Three | D.O.L. | 15 | 4.5 |
| 80TRN412 | 80 | 12 | Three | Star-Delta | 15 | 6 |
| 80TRN417 | 80 | 17 | Three | Star-Delta | 15 | 6 |
| 100TRN424 | 100 | 24 | Three | Star-Delta | 22 | 6 |
| 150TRN440 | 150 | 40 | Three | Star-Delta | 25 | 6 |
*1 Max. water depth is the load limit of the motor. The load placed on the motor increase the deeper the submersible aerator is installed, therefore if the aerator is operated below the max. water depth, the overload will trip the motor protection device and stop the aerator from running continuously.

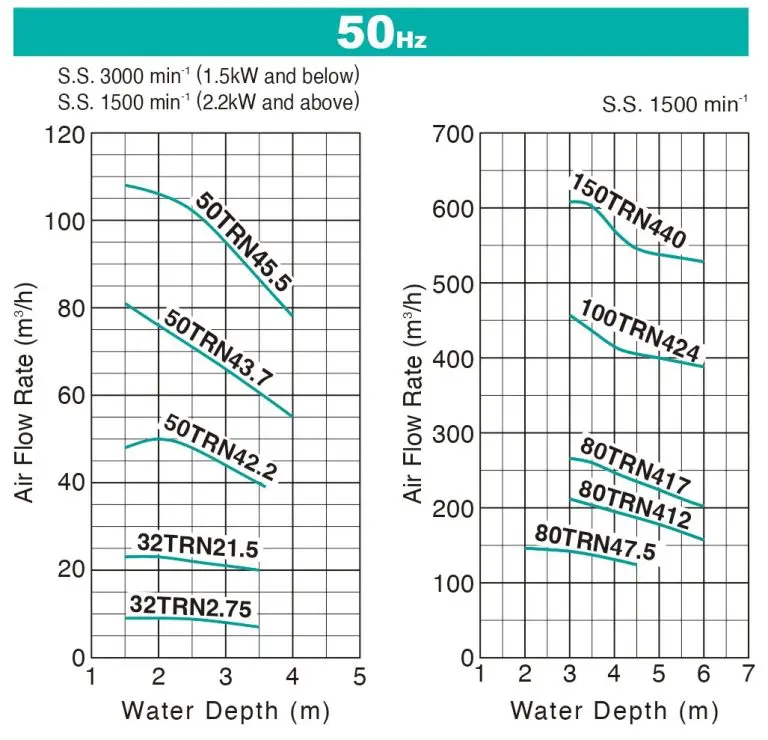

(The air flow rates are expressed at the standard condition, i.e. temperature of 20℃, 1 atm and may vary by up to approximately 5%)
Why Choose Tsurumi
Tsurumi pumps are known worldwide for their reliability, ease of maintenance and long service life. With more than a century of engineering experience, Tsurumi is trusted by contractors, councils and operators across Australia. Customers also benefit from national spare-parts support and fast delivery.
Proven Tsurumi Reliability
Tsurumi pumps are used on job sites across Australia and around the world. The TRN series is supported by Tsurumi’s national spare parts network and offers fast delivery to keep projects on schedule.
Related Products

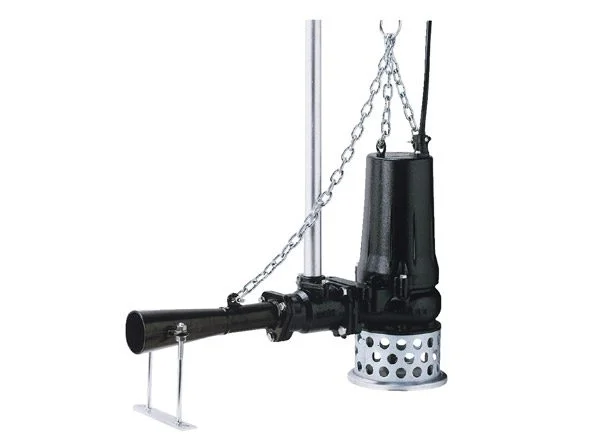

BER Series – Submersible Self-Aspirating Jet Aerators
