UT & UTZ
Max Flow Rate: 7.3L/sec (0.44 m3/min)
Head Max: 12.5m
UT & UTZ Series

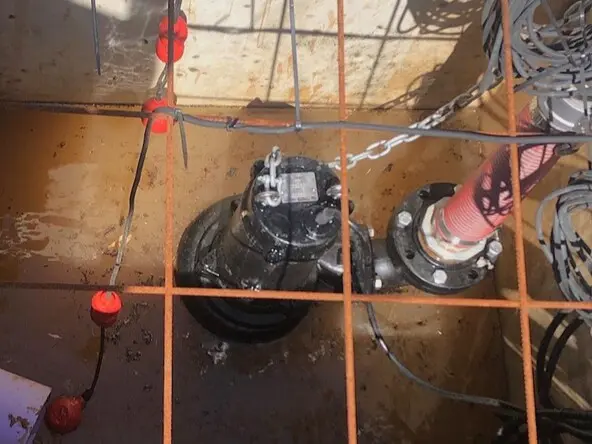

The UT-series is a 2-pole motor, compact and economical type submersible pump equipped with a vortex impeller for sewage and wastewater. The semi-vortex design provides a wide 35 mm large solids passage that reduces clogging of solid matter to a minimum. In addition, the UTZ-series is an automatic model equipped with a simple float switch that prevents dry-running operation and reduces power consumption.
| Discharge Bore(mm) | 50 |
|---|---|
| Motor Output(kW) | 0.4 – 0.75 |
Applications:

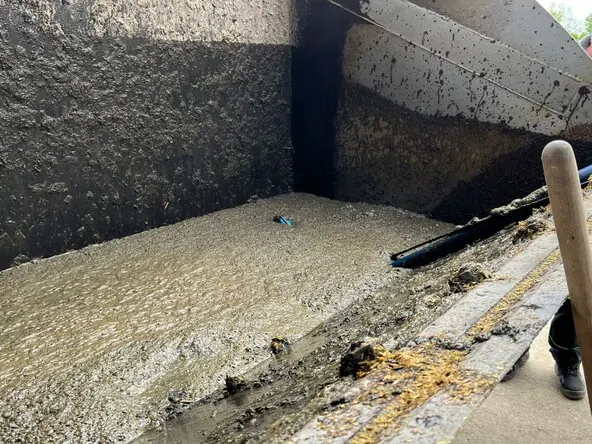

- Transferring wastewater between tanks
- Draining sewage and wastewater from residential, commercial, industrial premises
- Water run-off containing solids
Protector:
- Auto Cutout
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Type | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) | Max Flow (l/sec) | Max Head | Dry Weight (exc cable) |
|---|---|---|---|---|---|---|---|---|---|
| 40UT2.25 | Manual | 40 | 0.25 | Three | D.O.L. | 35 | 3.83 | 6.5m | 13kg |
50UT2.4S  | Manual | 50 | 0.4 | Single | Capacitor Run | 35 | 4.5 | 9m | 13.5kg |
| 50UT2.4 | Manual | 50 | 0.4 | Three | D.O.L. | 35 | 5 | 9m | 13kg |
| 50UT2.75S | Manual | 50 | 0.75 | Single | Capacitor Run | 35 | 7.33 | 12.5m | 16.5kg |
| 50UT2.75 | Manual | 50 | 0.75 | Three | D.O.L. | 35 | 7.33 | 12.5m | 15.5kg |
| 50UTZ2.4S | Auto (with float) | 50 | 0.4 | Single | Capacitor Run | 35 | 4.5 | 9m | 13.5kg |
| 50UTZ2.75S | Auto (with float) | 50 | 0.75 | Single | Capacitor Run | 35 | 7.33 | 12.5m | 16.5kg |
Notes:
Icon identifies single phase pumps in compliance with AS/NZS 4417.1 & 2
