KTZ 415V Series – Submersible High Head Drainage Pumps (Manual)
Max Flow Rate: 66.6L/sec (4m3/min)
Head Max: 71m
High-head dewatering for mining, construction, and industrial drainage applications

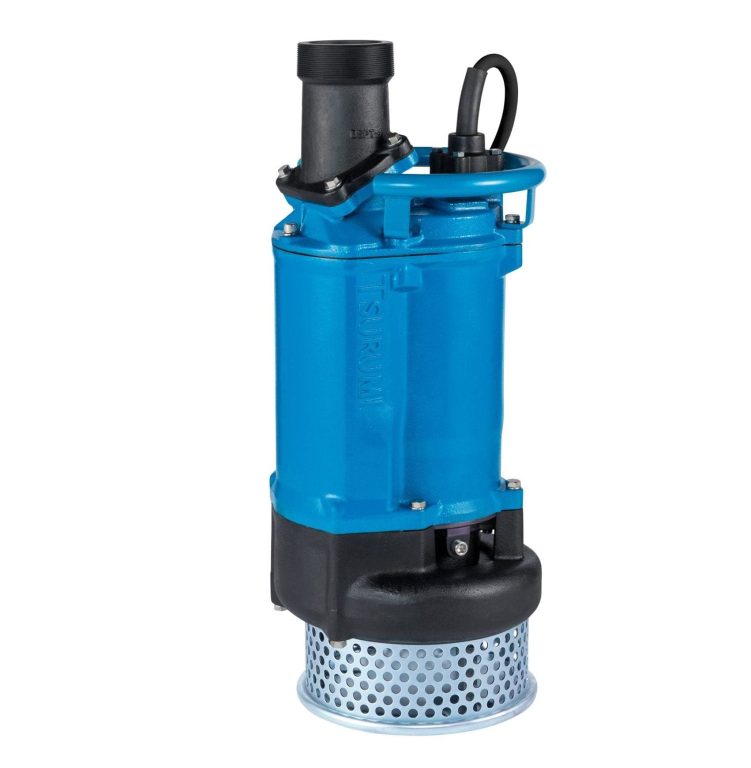

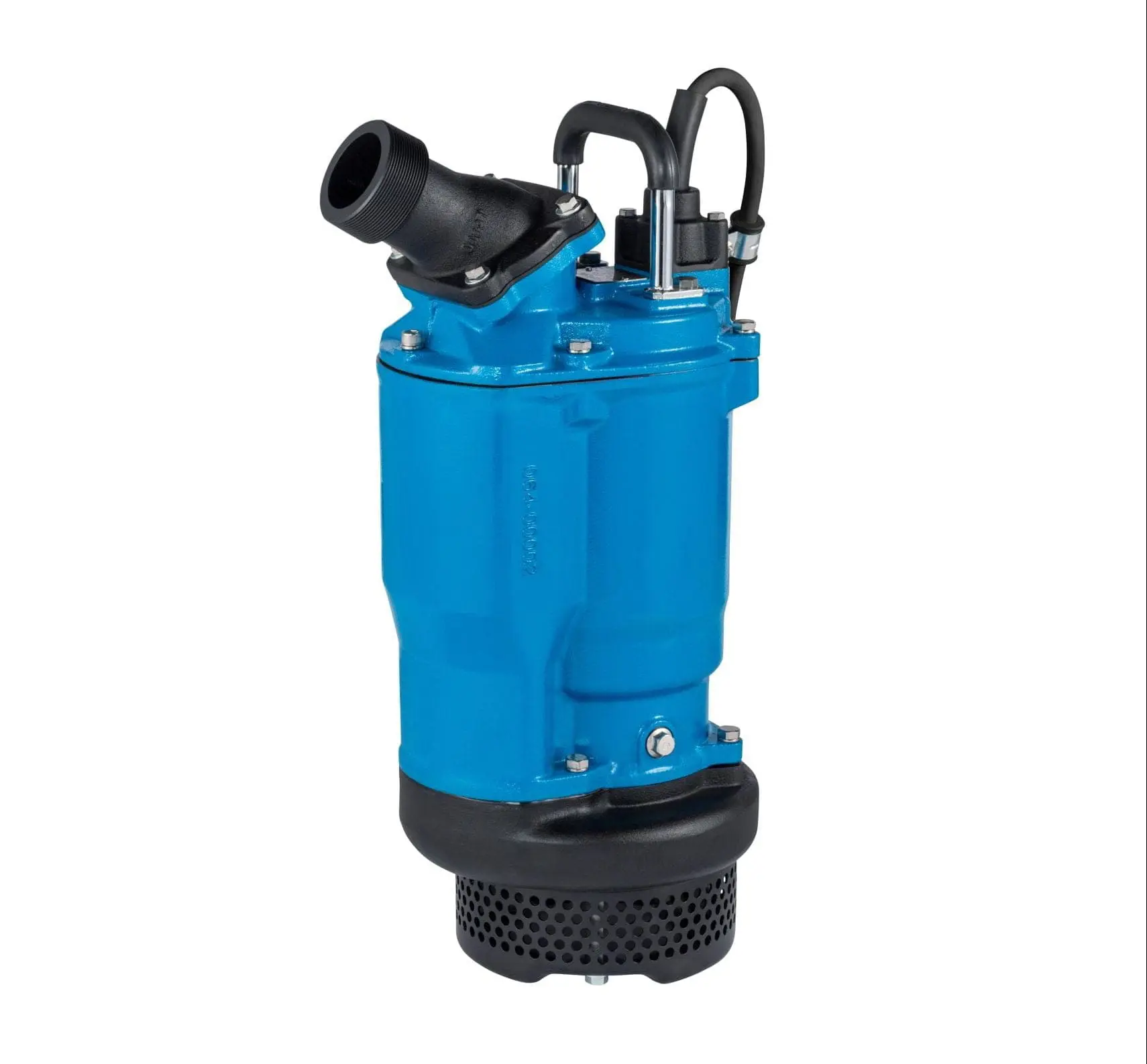

The KTZ-series is a submersible three-phase cast iron high head heavy-duty drainage pump. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge is a male thread BSPT fitting however a hose tail (vertical and inclined) is available. The pump with 7.5 to 22kW motor incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
| Discharge Bore(mm) | 50 – 150 |
|---|---|
| Motor Output(kW) | 1.5 – 22 |
Typical Applications
- Water Truck Fill Stations

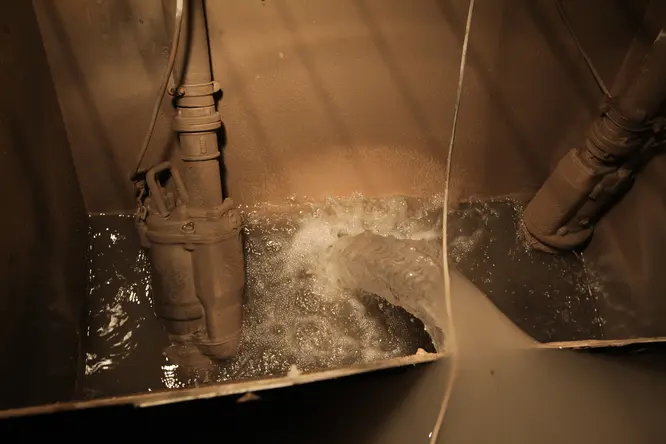

- Sumps & Pump Stations
- Fish Tanks (Water Containment Tanks)
- Turkey Nest Dams
- Water Transfer
- Decant Dams/Ponds

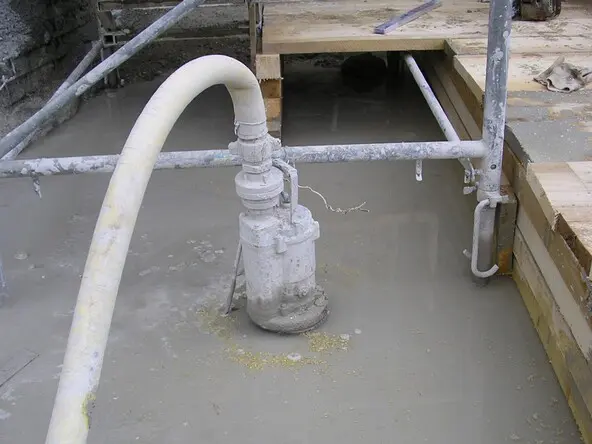

- Construction site dewatering and stormwater control
- Tunnelling and underground works
- Sheet piling and deep excavations
- Industrial plants/Cement plants
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| KTZ21.5 | 50 | 1.5 | Three | D.O.L. | 8.5 |
| KTZ22.2 | 50 | 2.2 | Three | D.O.L. | 8.5 |
| KTZ23.7 | 50 | 3.7 | Three | D.O.L. | 8.5 |
| KTZ31.5 | 80 | 1.5 | Three | D.O.L. | 8.5 |
| KTZ32.2 | 80 | 2.2 | Three | D.O.L. | 8.5 |
| KTZ33.7 | 80 | 3.7 | Three | D.O.L. | 8.5 |
| KTZ35.5 | 80 | 5.5 | Three | D.O.L. | 8.5 |
| KTZ43.7 | 100 | 3.7 | Three | D.O.L. | 8.5 |
| KTZ45.5 | 100 | 5.5 | Three | D.O.L. | 8.5 |
| KTZ47.5 | 100 | 7.5 | Three | D.O.L. | 12 |
| KTZ411 | 100 | 11 | Three | D.O.L. | 12 |
| KTZ415 | 100 | 15 | Three | D.O.L. | 12 |
| KTZ422 | 100 | 22 | Three | D.O.L. | 8.5 |
| KTZ67.5 | 150 | 7.5 | Three | D.O.L. | 20 |
| KTZ611 | 150 | 11 | Three | D.O.L. | 20 |
| KTZ615 | 150 | 15 | Three | D.O.L. | 20 |
| KTZ622 | 150 | 22 | Three | D.O.L. | 12 |

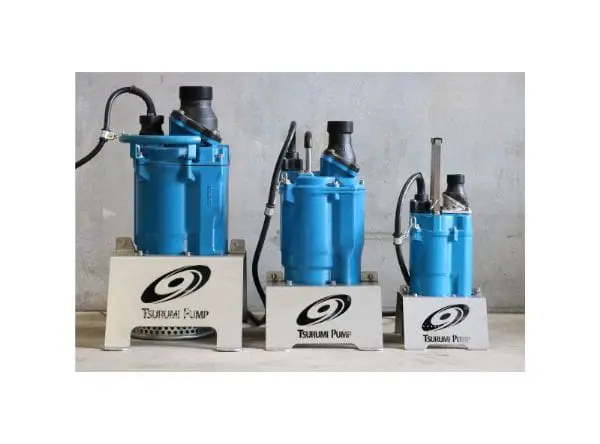

Accessories available upon request.
