LB/LB-A
Max Flow Rate: 5.16L/sec (0.31m3/min)
Head Max: 15m
From $727.00 excl. GST (Price per Item)
LB/LB-A Series
The LB/LB-A series are submersible single-phase portable drainage pumps. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose. Every LB-series is slim design enough to be accommodated in an 8-inch pipe. The LB-A series with an innovative electrode type relay unit automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life.
| Discharge Bore(mm) | 50 (80) |
|---|---|
| Motor Output(kW) | 0.48 – 0.75 |
Applications:

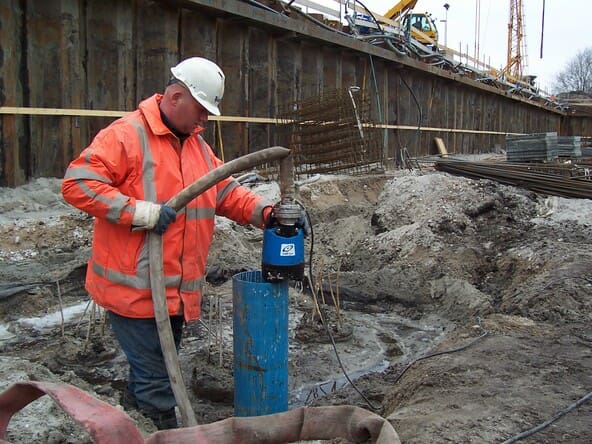

- Foundation works
- Floodwater drainage
- Residential, commercial, industrial wastewater and site drainage
- Decorative waterfalls and fountains
- Raw water supply from lakes or rivers

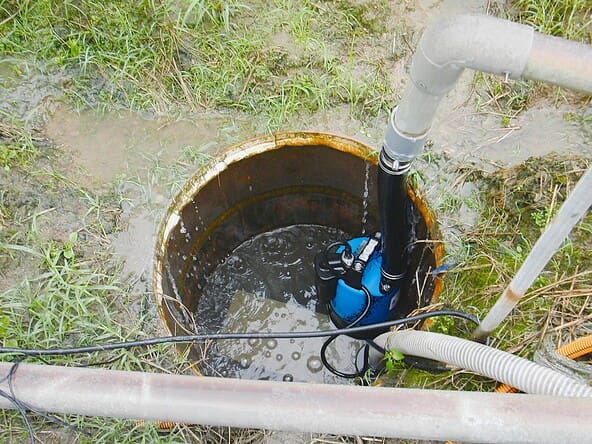

- Sediment removal from small sumps or basins
Protector:
- Auto Cutout
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Type | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) | Max Flow (l/sec) | Max Head | Dry Weight (exc cable) |
|---|---|---|---|---|---|---|---|---|---|
LB-480A  | Auto (with electrode) | 50 | 0.48 | Single | Capacitor Run | 6 | 3.66 | 11m | 11kg |
| LB-800A | Auto (with electrode) | 50(80)*2 | 0.75 | Single | Capacitor Run | 6 | 5.16 | 15m | 13.7kg |
| LB-480 | Manual | 50 | 0.48 | Single | Capacitor Run | 6 | 3.66 | 11m | 10.4kg |
| LB-800 | Manual | 50(80)*2 | 0.75 | Single | Capacitor Run | 6 | 5.16 | 15m | 13.1kg |
Icon identifies single phase pumps in compliance with AS/NZS 4417.1 & 2- * 80mm discharge bore available on special request
Related Products
Cables

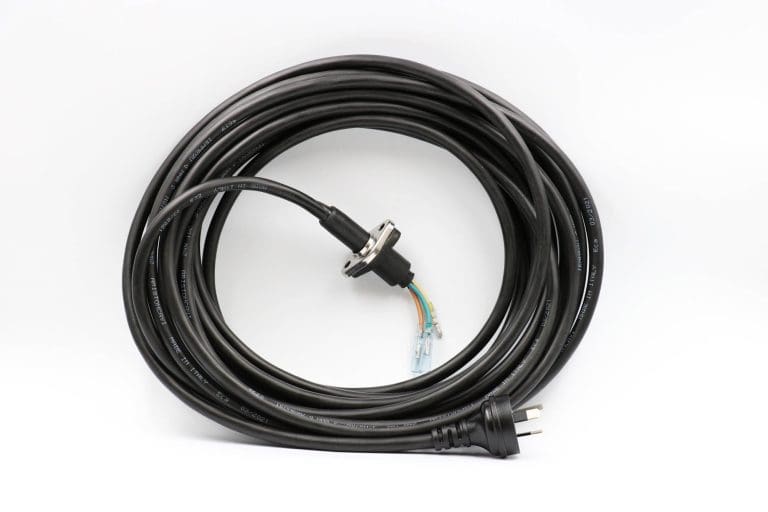

Cables Tsurumi's 10m cable set are 220/230/240V - 50Hz. Every cabtyre cable features an anti-wicking block which prevents incursion of water into the motor. The automatic version comes with the float switch. Selection Guide: 801001010219 (Manual) Suits: LSP1.4S-52, LSC1.4S-52, LB-800-52,...
Hoses

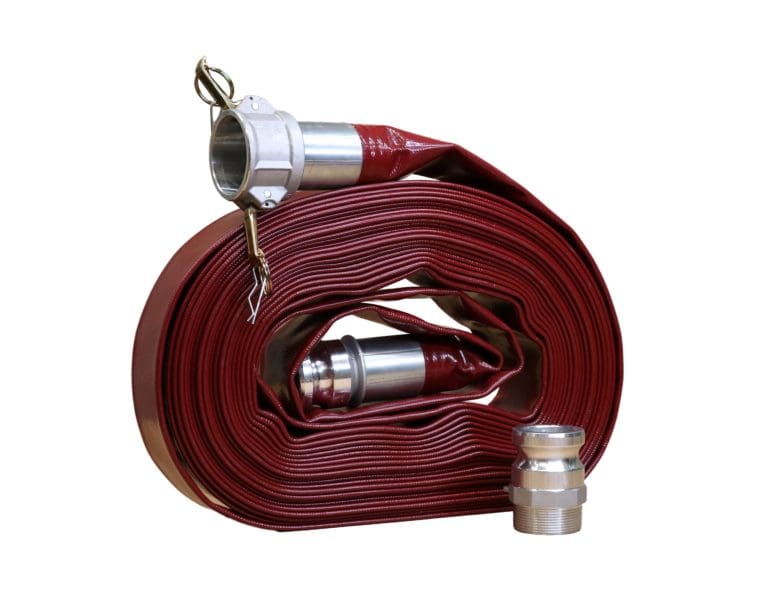

Hoses Exitflex red layflat hoses are well suited for water drainage at sites where water must be moved to significantly higher or lower elevations. It is ideally suited for use as a high pressure water transfer hose in the mining,...
