LB/LB-A
Max Flow Rate: 5.16L/sec (0.31m3/min)
Head Max: 15m
LB/LB-A Series
The LB/LB-A series are submersible single-phase portable drainage pumps. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose. Every LB-series is slim design enough to be accommodated in an 8-inch pipe. The LB-A series with an innovative electrode type relay unit automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life.
| Discharge Bore(mm) | 50 (80) |
|---|---|
| Motor Output(kW) | 0.48 – 0.75 |
Applications:
- Foundation works
- Floodwater drainage
- Residential, commercial, industrial wastewater and site drainage
- Decorative waterfalls and fountains
- Raw water supply from lakes or rivers
- Sediment removal from small sumps or basins
Protector:
- Auto Cutout
Note:
1. Not all the pumps listed in the catalogue are available for Australia. Models for Australia are listed below under ‘Models’
2. Product guides / catalogues may vary for Australia. Contact us for the latest technical data
| Model | Type | Discharge Bore (mm) | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) | Max Flow (l/sec) | Max Head | Dry Weight (exc cable) |
|---|---|---|---|---|---|---|---|---|---|
LB-480A  | Auto (with electrode) | 50 | 0.48 | Single | Capacitor Run | 6 | 3.66 | 11m | 11kg |

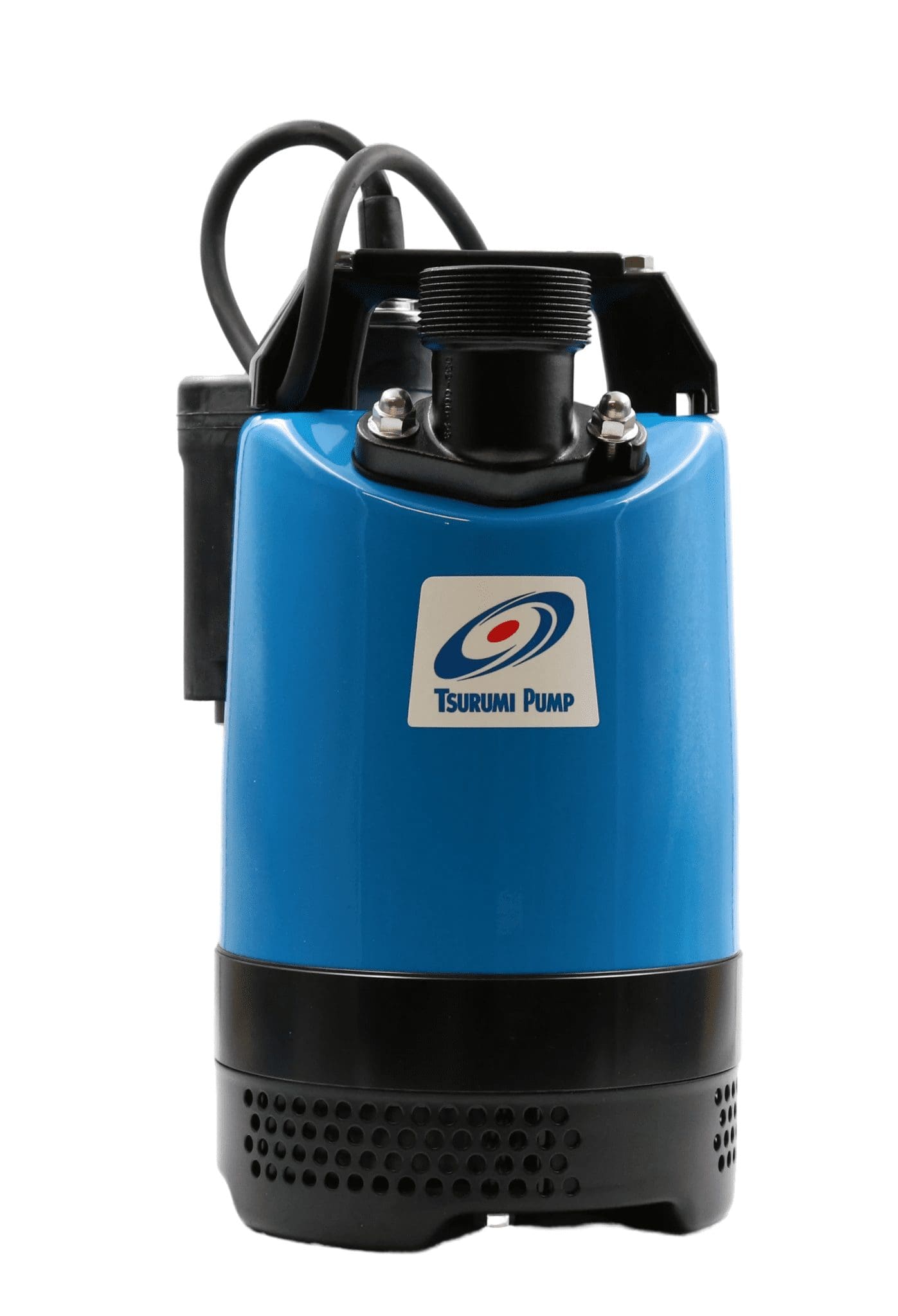

| LB-800A | Auto (with electrode) | 50(80)*2 | 0.75 | Single | Capacitor Run | 6 | 5.16 | 15m | 13.7kg |

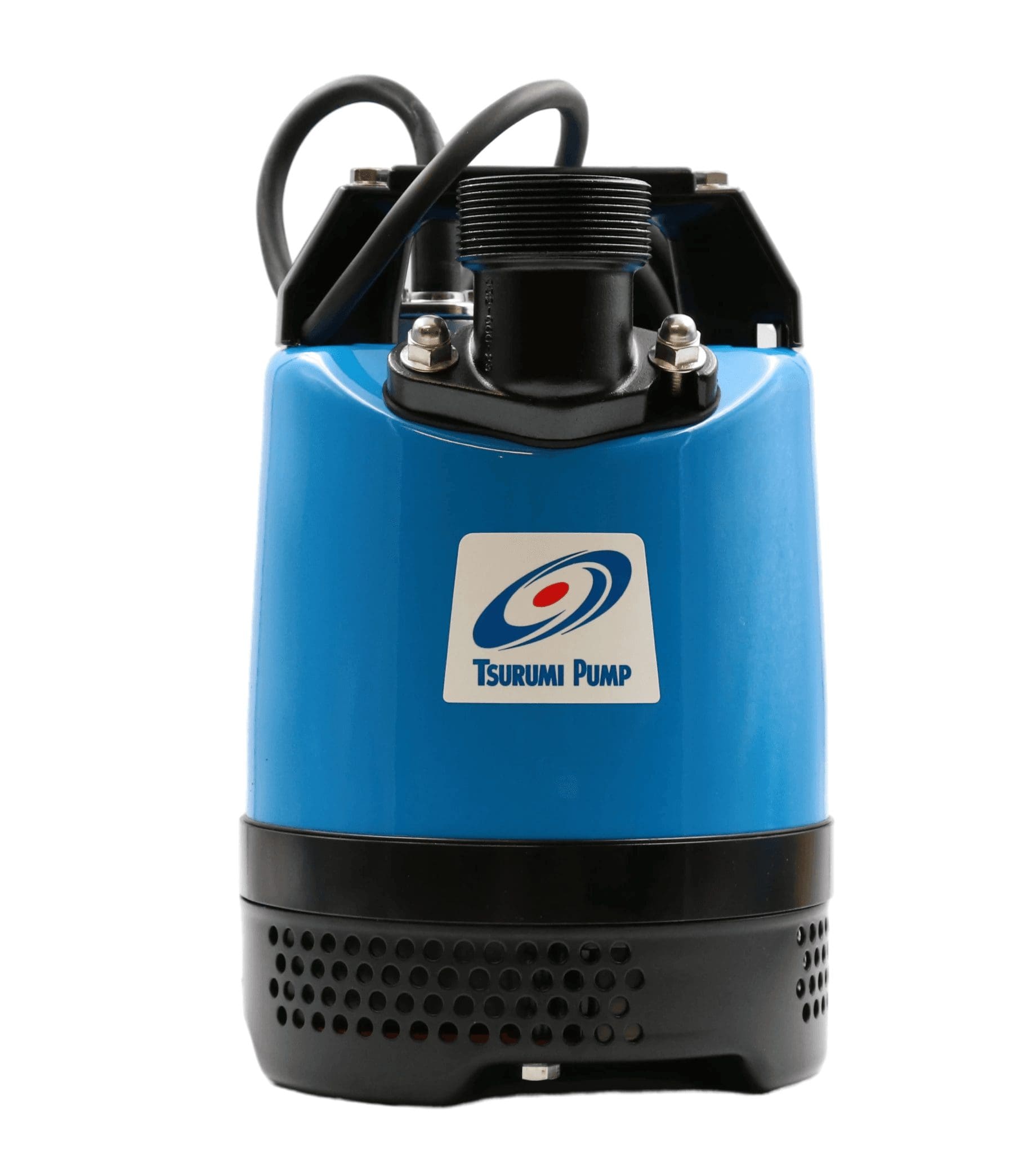

| LB-480 | Manual | 50 | 0.48 | Single | Capacitor Run | 6 | 3.66 | 11m | 10.4kg |

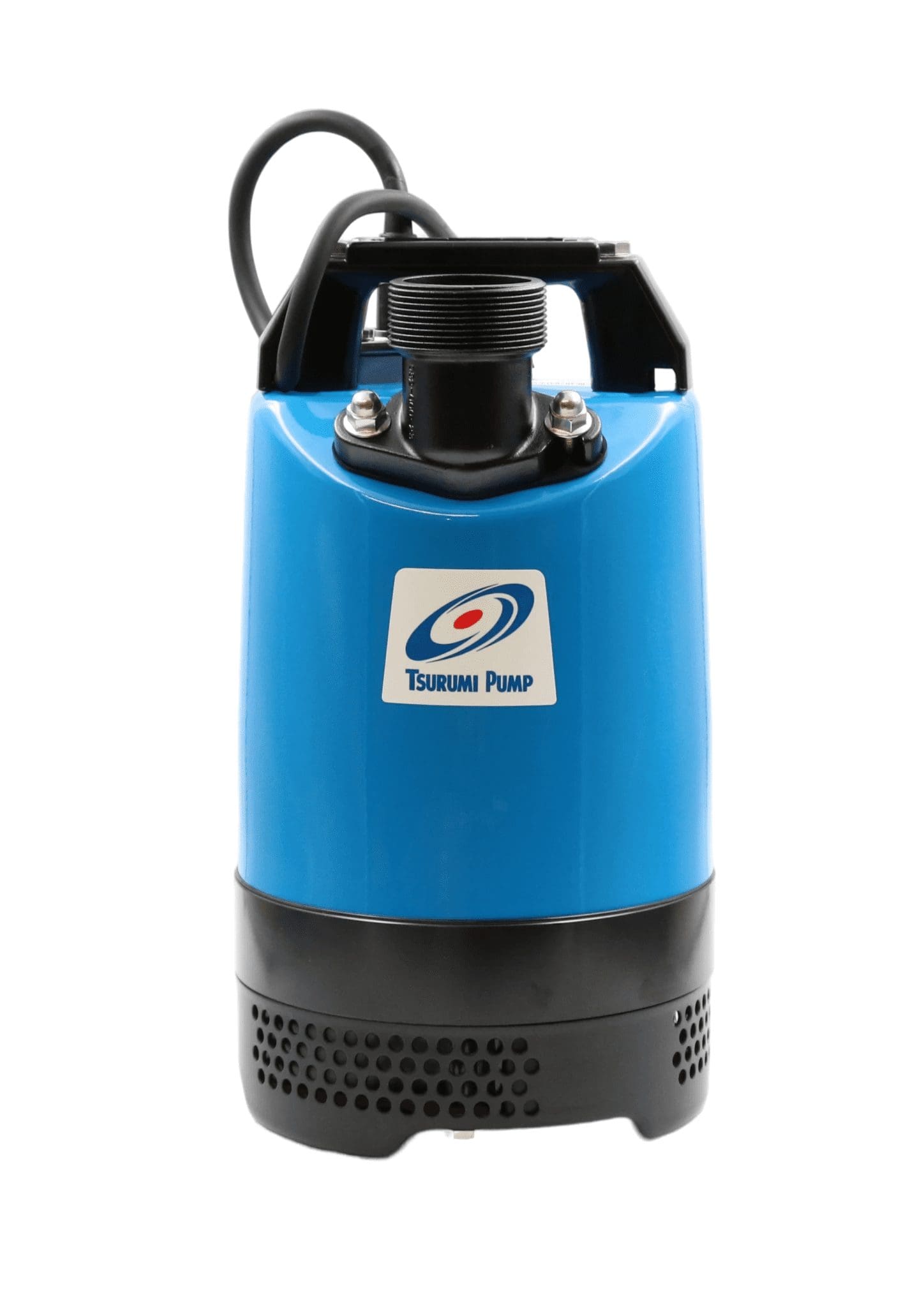

| LB-800 | Manual | 50(80)*2 | 0.75 | Single | Capacitor Run | 6 | 5.16 | 15m | 13.1kg |
Icon identifies single phase pumps in compliance with AS/NZS 4417.1 & 2- * 80mm discharge bore available on special request
